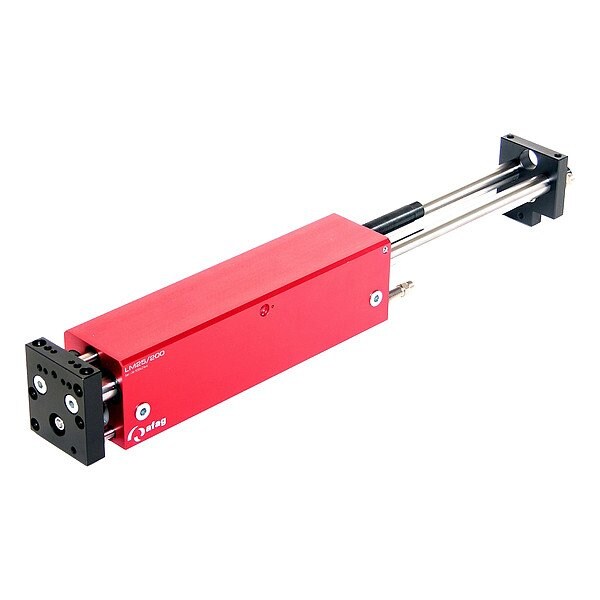

Slide, 8 bar
- Mfr # 11011897
- Zoro # G116017630
product price:Â
$
2,139.99
/ea
Free Shipping & Returns
Key Features
Maximum Operating Pressure
8 bar
Cylinder Bore Diameter
25 mm
Maximum Payload
4 kg
Minimum Operating Temperature
32 Degrees F
Maximum Stroke
200 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 11011897
- Zoro #
- G116017630
- UPC #
- -
- Country of Origin
- Korea, Republic of
Dimensions
- Cylinder Bore Diameter
- 25 mm
Details
- Item
- Slide
- Maximum Operating Pressure
- 8 bar
- Maximum Payload
- 4 kg
- Minimum Operating Temperature
- 32 Degrees F
- Maximum Stroke
- 200 mm
- Maximum Operating Temperature
- 122 Degrees F
- Minimum Operating Pressure
- 4 bar
- Repeatability
- +/-0.02 mm
- Series
- LM
- System of Measurement
- Metric
Description
Slide, Maximum Stroke 200 mm, Cylinder Bore Diameter 25 mm, Maximum Payload 4 kg, Series LM, Maximum Operating Pressure 8 bar, Minimum Operating Pressure 4 bar, Maximum Operating Temperature 122 Degrees F, Minimum Operating Temperature 32 Degrees F, Repeatability +/-0.02 mm, System of Measurement Metric
