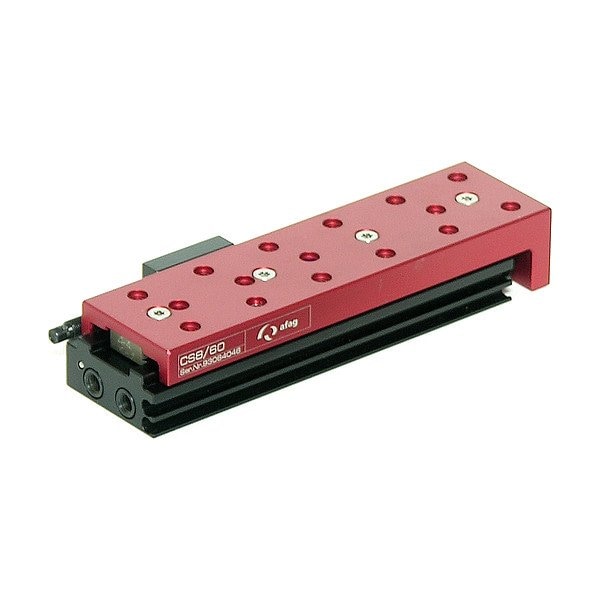

Slide, 8 bar
Mfr # 50300527
Zoro # G016017082
product price: $877.99
/ea
Free Shipping & Returns
Key Features
Maximum Operating Pressure
8 bar
Minimum Operating Temperature
32 Degrees F
Minimum Operating Pressure
4 bar
Maximum Payload
0.2 kg
Maximum Operating Temperature
122 Degrees F
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
50300527
Zoro #
G016017082
UPC #
-
Country of Origin
Switzerland
Dimensions
Cylinder Bore Diameter
6 mm
Details
Item
Slide
Maximum Operating Pressure
8 bar
Minimum Operating Temperature
32 Degrees F
Minimum Operating Pressure
4 bar
Maximum Payload
0.2 kg
Maximum Operating Temperature
122 Degrees F
Maximum Stroke
60 mm
Series
AF-CS
System of Measurement
Metric
Repeatability
+/-0.01 mm
Description
Slide, Maximum Stroke 60 mm, Cylinder Bore Diameter 6 mm, Maximum Payload 0.2 kg, Series AF-CS, Maximum Operating Pressure 8 bar, Minimum Operating Pressure 4 bar, Maximum Operating Temperature 122 Degrees F, Minimum Operating Temperature 32 Degrees F, Repeatability +/-0.01 mm, System of Measurement Metric
