  11. Metal Clad Building Cable, MC, 14 AWG, 2C with Ground C, Silver, Aluminum, Solid, 600V AC, 250 ft

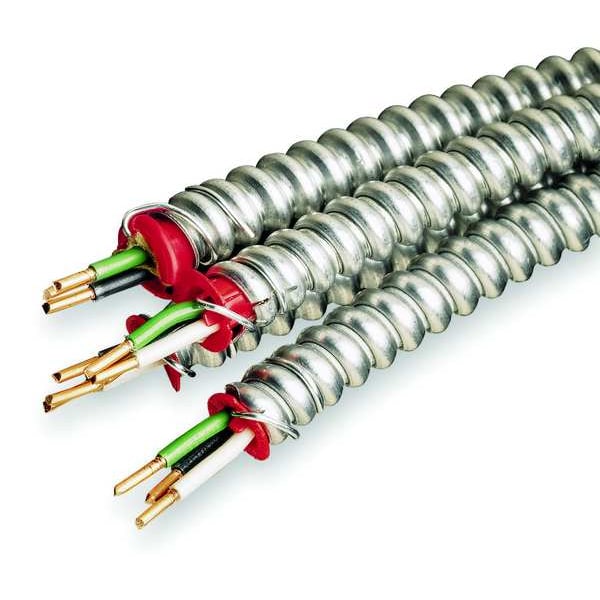

Afc Cable Systems Metal Clad Building Cable, MC, 14 AWG, 2C with Ground C, Silver, Aluminum, Solid, 600V AC, 250 ft 2101S42-00 - main

Metal Clad Building Cable, MC, 14 AWG, 2C with Ground C, Silver, Aluminum, Solid, 600V AC, 250 ft

  • Mfr # 2101S42-00

  • Zoro # G1618486

product price: $244.99
/ea
Free Shipping & Returns

Key Features

Trade Designation
MC
Wire Size
14 AWG
Conductor Material
Copper
Number of Conductors
2C with Ground
Wire Color
Black/Green/White
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2101S42-00
Zoro #
G1618486
UPC #
077680228864
Country of Origin
United States

Dimensions

Wire Size
14 AWG
Length
250 ft
Nominal Outside Dia.
0.47 in
Conductor Size
14 AWG
Overall Length
250 ft
Outside Diameter (in)
0.474
Minimum Bend Radius
7.1
Trade Size (in)
14-2
Nominal Outside Diameter
0.42 in
Grounding Conductor Size
14 AWG

Details

Item
Metal Clad Building Cable
Trade Designation
MC
Conductor Material
Copper
Number of Conductors
2C with Ground
Wire Color
Black/Green/White
Jacket Color
Silver
Jacket Material
Aluminum
Conductor Design
Solid
Insulation Material
Nylon, PVC
Voltage
600V AC
Temp. Rating
90°C
Standards
UL 83, 1479, 1569, 1581, 2556, NEC 230.43, 300.22(C), 392, 396, 330, 501, 502, 503, 530, 504, 505, 518, 520, 530, 645, Federal Specification A-A-59544, Meets OSHA and HUD Requirements, ISO 9001 Certified
Max. Amps
15
Application
General Purpose
Insulated / Uninsulated
Insulated
Features
Cable System. Technically equivalent and economically superior to traditional raceway and wire installations.; ColorSpec® ID/Color-Trak ID System. Plain aluminum armor with phase ID painted directly onto the armor for added identification without the added step of opening up the panel to determine circuit type.*; Redundant Grounding. For applications requiring isolated, redundant, or dedicated grounding conductors. Isolated Ground (I.G.) configuration with 2 Green grounds, 1 solid green, 1 with yellow stripe available upon request.; RoHS Compliant. Aluminum armored cables are RoHS compliant; Buy American. Aluminum armored cables are Buy American compliant; Made in USA of US and/or imported materials; *No ColorSpec on Low Voltage BK WE GN 12-2, all 10 AWG and larger configurations.
Packaging
Coil
Shielding Material
Polypropylene Tape
Conductor Insulation Color
Black, White
Grounding Conductor Insulation Color
Green
Grounding Conductor Material
Copper
Conductor Insulation Material
Nylon, PVC
Temperature Rating - Maximum Dry
194 Degrees F
Number of Ground Conductors
1
Number of Strands
1

Description

Metal Clad Armored Cable, Trade Designation MC, Wire Size 14 AWG, Number of Conductors 2, Wire Color Black/Green/White, Jacket Color Silver, Length 250 ft, Conductor Design Solid, Jacket Material Aluminum, Insulation Material Nylon, PVC, Nominal Outside Dia. 0.42 in, Packaging Coil, Voltage 600 V, Temp. Rating 194 Degrees F Dry
