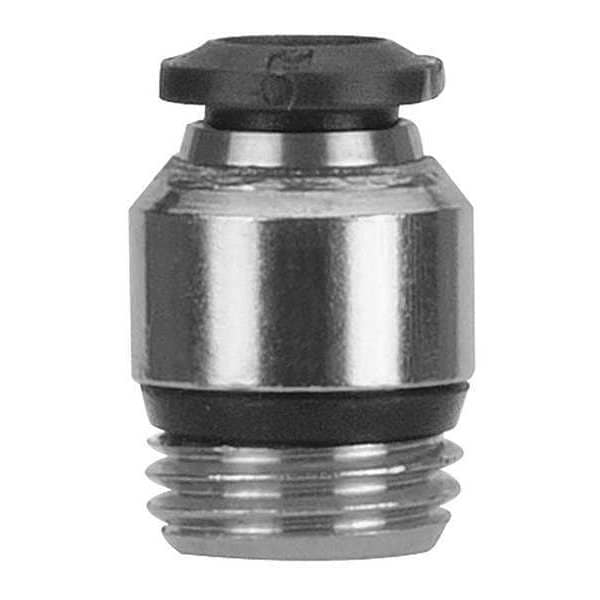

Push-Fit Adapter Fitting, Push-to-Connect x Universal, 4mm Tube OD, 5 mm Pipe Size, Metal, 5 PK

The AIGNEP USA - 50010N-4-M5-PK5 is a Push-Fit Adapter Fitting that is specifically designed for pneumatic applications. Manufactured from robust nickel-plated brass, this metal adapter fitting provides a reliable, high-performance solution for different vacuum applications. It's compatible with various tube materials, including FEP, Polyamide 11, Polyamide 12, Polyamide 6, Polyethylene, Polyurethane, and PTFE, offering versatility for diverse pneumatic applications. This adapter fitting allows for a secure connection with a 4mm tube on one end, and a universal thread on the other side that's compatible with both inch and metric threads. It can perform under specific conditions such as a maximum operating pressure of 290 psi and temperatures as high as 160 degrees Fahrenheit.

Key Features:

• Nickel-plated brass body for durability and high-performance operation.
• 4 mm tube outer diameter compatibility for versatile use.
• Universal thread system is compatible with both inch and metric threads.
• Maximum operating pressure up to 290 PSI for application in high-pressure environments.
• Can withstand temperatures between 0 and 160 degrees Fahrenheit.
• Compliant with several standards including ISO 14743:2004, PED 2014/68/UE, 1907/2006 REACH, RoHS 2011/65/CE, indicating stringent adherence to industrial quality standards.
