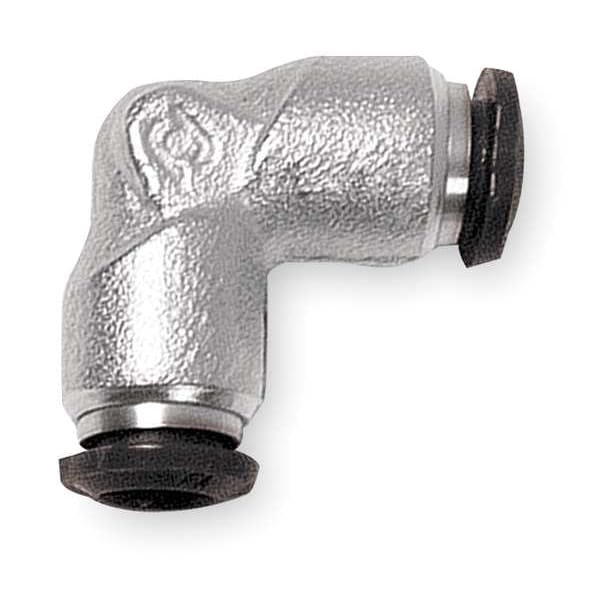

Push-Fit Elbow Fitting, Push-to-Connect x Push-to-Connect, 3mm Tube OD, Metal, 5 PK

  • Mfr # 50130N-3-PK5

  • Zoro # G2865432

product price:  $33.19
/pk 5, $6.64/ea

Key Features

Material
Metal
Max. Pressure
250 psi
Connection Type
Push-to-Connect x Push-to-Connect
Tube Size
3mm
Standards
ISO 14743:2004, PED 2014/68/UE, 1907/2006 REACH, RoHS 2011/65/CE, Silicone Free Certified
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
50130N-3-PK5
Zoro #
G2865432
UPC #
-
Country of Origin
United States

Dimensions

Tube Size
3mm
Fitting Side A Tube Outer Diameter
3 mm
Fitting Side B Tube Outer Diameter
3 mm
Fitting Side 2 Tube Outer Diameter
3 mm
Fitting Side 1 Tube Outer Diameter
3 mm

Details

Item
Push-Fit Elbow Fitting
Material
Metal
Max. Pressure
250 psi
Connection Type
Push-to-Connect x Push-to-Connect
Standards
ISO 14743:2004, PED 2014/68/UE, 1907/2006 REACH, RoHS 2011/65/CE, Silicone Free Certified
Application
Air
Temp. Range
0 Degrees to 160 Degrees F
Specific Pipe Fitting Shape
90 Degree Elbow
Fitting Shape
90 Degrees Elbow
Special Features
Universal Thread System Compatible with Inch and Metric Threads
Gasket Material
Rubber
Body Material
Nickel Plated Brass
Basic Pipe Fitting Shape
Elbow
Fittings Sub-Category
Elbows
Basic Pipe Fitting Material
Metal
Pipe Fitting Connection Type
Tube
Color
Silver
System of Measurement
Metric
Fitting Material
Brass
Maximum Operating Temperature
160 Degrees F
Fitting Side A Connection Type
Push-to-Connect
Thread Sealant Type
Rubber
Includes Pre-Applied Thread Sealant
Pre-Applied Thread Sealant Included
Maximum Operating Pressure
290 psi
Finish/Coating
Nickel Plated
Compatible Tube Material
Copper, Nylon, Polyethylene, Polyurethane
Minimum Operating Temperature
0 Degrees F
Fitting Side B Connection Type
Push-to-Connect
Release Ring Material
Rubber
Fitting Side 1 Connection Type
Push-to-Connect
Fitting Side 2 Connection Type
Push-to-Connect
Finish
Nickel-Plated
Operating Temperature - Minimum
0 Degrees F
Operating Temperature - Maximum
160 Degrees F
For Media Type
Air
Operating Pressure - Maximum
290 psi

Description

Push-Fit Elbow Fitting, Application Air, Fitting Side A Connection Type Push-to-Connect, Fitting Side B Connection Type Push-to-Connect, Fitting Side A Tube Outer Diameter 3 mm, Fitting Side B Tube Outer Diameter 3 mm, Fitting Material Brass, Color Silver, Includes Pre-Applied Thread Sealant Pre-Applied Thread Sealant Included, Maximum Operating Pressure 290 psi, Maximum Operating Temperature 160 Degrees F, Specific Fitting Shape 90 Degrees Elbow

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
