  6. Push-Fit Elbow Fitting, Push-to-Connect x Universal, 5/32 in Tube OD, 5/32 in Pipe Size
Aignep Usa Push-Fit Elbow Fitting, Push-to-Connect x Universal, 5/32 in Tube OD, 5/32 in Pipe Size 85110-53-32 - main

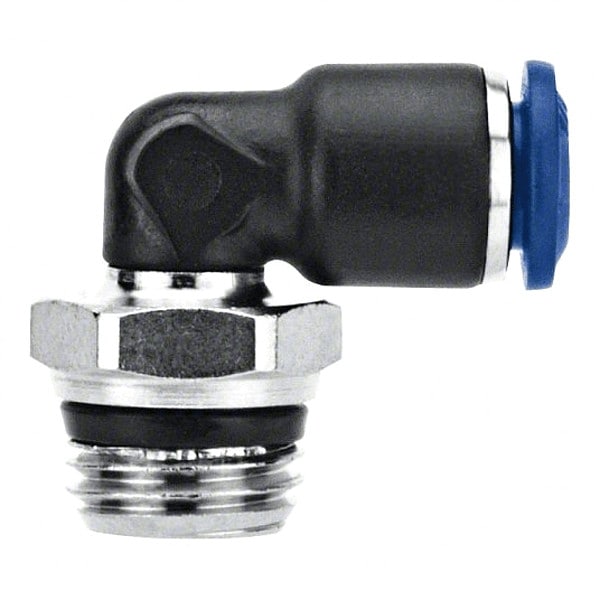

Push-Fit Elbow Fitting, Push-to-Connect x Universal, 5/32 in Tube OD, 5/32 in Pipe Size

  • Mfr # 85110-53-32

  • Zoro # G5096878

product price:  $2.49
/ea

Key Features

Material
Plastic/Metal Combination
Max. Pressure
250 psi
Connection Type
Push-to-Connect x Universal
Application
Air
Tube Size
5/32 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
85110-53-32
Zoro #
G5096878
UPC #
-
Country of Origin
United States

Dimensions

Tube Size
5/32 in
Pipe Size
5/32 in
Hex Head Size
23/64 in
Fitting Side A Tube Outer Diameter
5/32 in
Fitting Thread Size
#10-32
Fitting Side B Pipe Size
5/32 in
Fitting Side 1 Tube Outer Diameter
5/32 in
Fitting Side 2 Pipe Size
5/32 in

Details

Item
Push-Fit Elbow Fitting
Material
Plastic/Metal Combination
Max. Pressure
250 psi
Connection Type
Push-to-Connect x Universal
Application
Air
Standards
ISO 14743:2004, PED 2014/68/UE, 1907/2006 REACH, RoHS 2011/65/CE, Silicone Free Certified
Temp. Range
0 Degrees to 160 Degrees F
Fitting Shape
90 Degrees Elbow
Color
Black
Fittings Sub-Category
Elbows
Body Material
Composite
Gasket Material
NBR70
Compliance
EN331, REACH, ROHS
Special Features
Universal Thread System Compatible with Inch and Metric Threads
Release Ring Material
NBR70
Minimum Operating Temperature
0 Degrees F
Maximum Operating Pressure
250 psi
Includes Pre-Applied Thread Sealant
Pre-Applied Thread Sealant Included
System of Measurement
Imperial
Fitting Side B Connection Type
Universal
Thread Sealant Type
NBR 70
Fitting Side A Connection Type
Push-to-Connect
Compatible Tube Material
Copper, Nylon, Polyethylene, Polyurethane
Fitting Material
Nylon
Maximum Operating Temperature
160 Degrees F
Fitting Side 2 Connection Type
MUNF
Operating Temperature - Maximum
160 Degrees F
Fitting Side 1 Connection Type
Push-to-Connect
Operating Pressure - Maximum
250 psi
Connector Type
Adapter
For Media Type
Air
Operating Temperature - Minimum
0 Degrees F
Fitting Features
Swivel

Description

The AIGNEP USA - 85110-53-32 is a push-on hose fitting, designed with a broad variety of industrial and commercial applications in mind. This device primarily enables the connection of hoses and tubes for efficiently and effectively transporting fluids or gases. Crafted from robust materials, this fitting is designed with durability in mind. The fitting has been engineered for compatibility with various hoses, offering versatile use across multiple tasks.

Key Features:

  • Durable Construction: This fitting is crafted to endure the intense demands of commercial and industrial usage. Its robust construction suggests potential for long-term use.
  • Versatile Compatibility: This fitting has been designed to be compatible with a range of hoses, enhancing its versatility across multiple applications.
  • Efficient Fluid or Gas Transport: The push-on fitting is intended to assist in the transfer of liquids or gases, a key consideration in various industrial contexts.

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
