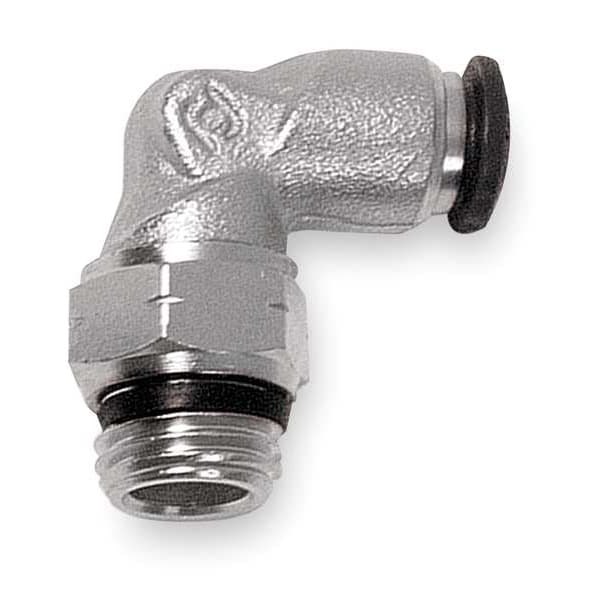

Push-Fit Elbow Fitting, Push-to-Connect x Universal, 5mm Tube OD, 1/8 in Pipe Size, Metal, 5 PK
Mfr # 50110N-5-1/8-PK5
Zoro # G1616002
product price:
$
30.15
/pk 5, $6.03/ea
Zoro's best price: not eligible for any other offers or promotions
Key Features
Material
Metal
Max. Pressure
250 psi
Connection Type
Push-to-Connect x Universal
Tube Size
5mm
Standards
ISO 14743:2004, PED 2014/68/UE, 1907/2006 REACH, RoHS 2011/65/CE, Silicone Free Certified
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 50110N-5-1/8-PK5
- Zoro #
- G1616002
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Tube Size
- 5mm
- Pipe Size
- 1/8 in
- Hex Head Size
- 13 mm
- Fitting Side A Tube Outer Diameter
- 5 mm
- Fitting Side B Pipe Size
- 1/8 in
- Fitting Side 1 Tube Outer Diameter
- 5 mm
- Fitting Side 2 Pipe Size
- 1/8 in
Description
The AIGNEP USA - 50110N-5-1/8-PK5 Push-Fit Elbow Fitting is an industrial tool classified under the category, "Push On Hose Fittings". Primarily made of nickel-plated brass, this push-fit elbow fitting is operational within a temperature range from 0° to 160° Fahrenheit. Being compatible with tube materials such as copper, nylon, polyethylene and polyurethane, and with a maximum operating pressure of 290 psi, this fitting is versatile and durable. The universal thread feature allows it to work with both inch and metric threads, making it a useful tool in various industrial and commercial settings.
Key Features:
- Basic Pipe Fitting Shape: The fitting has a geometric shape of a 90-degree elbow, allowing it to redirect the flow of air.
- Connection: It features a Push-to-Connect x Universal connection.
- Media Compatibility: Compatible with air as a media type.
- Maximum Operating Temperature: The fitting can operate within a temperature range as high as 160° Fahrenheit.
- Maximum Pressure: Rated to handle a maximum pressure up to 290 psi.
- Standards: Manufactured to meet industry standards including ISO 14743:2004, PED 2014/68/UE, 1907/2006 REACH, RoHS 2011/65/CE, Silicone Free Certified.
