Shop AIGNEP USA

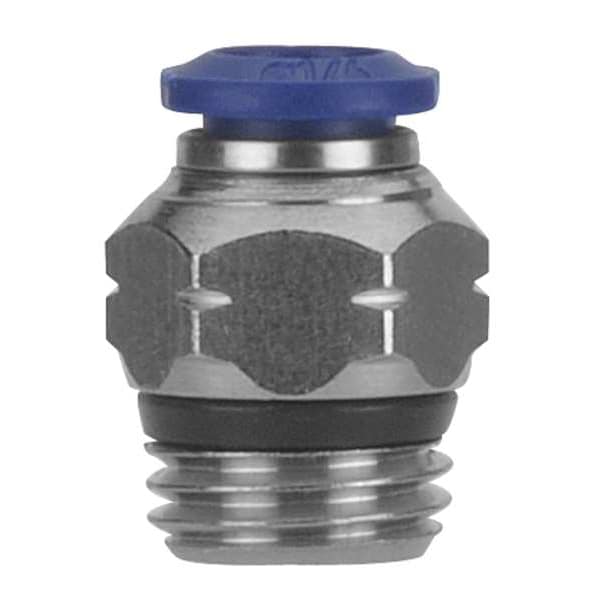

Push-Fit Fitting, Push-to-Connect x Universal, 5/16 in Tube OD, 1/8 in Pipe Size, Metal, 5 PK

  • Mfr # 87000-05-02

  • Zoro # G0973786

product price:  $19.35
/pk 5, $3.87/ea

Key Features

Material
Metal
Max. Pressure
250 psi
Connection Type
Push-to-Connect x Universal
Tube Size
5/16 in
Standards
ISO 14743:2004, PED 2014/68/UE, 1907/2006 REACH, RoHS 2011/65/CE, Silicone Free Certified
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
87000-05-02
Zoro #
G0973786
UPC #
-
Country of Origin
Multiple

Dimensions

Tube Size
5/16 in
Pipe Size
1/8 in
Hex Head Size
35/64 in
Overall Length
31/32 in
Fitting Thread Size
1/8-27
Fitting Side B Pipe Size
1/8 in
Fitting Side A Tube Outer Diameter
5/16 in
Fitting Side 2 Pipe Size
1/8 in
Fitting Side 1 Tube Outer Diameter
5/16 in
Wire Rope Length
31/32 in

Details

Item
Push-Fit Fitting
Material
Metal
Max. Pressure
250 psi
Connection Type
Push-to-Connect x Universal
Standards
ISO 14743:2004, PED 2014/68/UE, 1907/2006 REACH, RoHS 2011/65/CE, Silicone Free Certified
Application
Air
Temp. Range
0 Degrees to 160 Degrees F
Specific Pipe Fitting Shape
Connector
Fitting Shape
Straight
Body Material
Nickel Plated Brass
Fittings Sub-Category
Adapters
Gasket Material
NBR70
Basic Pipe Fitting Material
Metal
Basic Pipe Fitting Shape
Connector
Pipe Fitting Connection Type
Push-To-Connect
Color
Silver
Maximum Operating Temperature
160 Degrees F
Fitting Side B Connection Type
Universal
Finish/Coating
Nickel Plated
Thread Sealant Type
NBR 70
Includes Pre-Applied Thread Sealant
Pre-Applied Thread Sealant Included
Compatible Tube Material
Copper, Nylon, Polyethylene, Polyurethane
Fitting Material
Brass
Fitting Side A Connection Type
Push-to-Connect
Minimum Operating Temperature
0 Degrees F
Release Ring Material
NBR70
System of Measurement
Imperial
Maximum Operating Pressure
290 psi
Finish
Nickel-Plated
Operating Temperature - Maximum
160 Degrees F
Operating Pressure - Maximum
290 psi
Operating Temperature - Minimum
0 Degrees F
Connector Type
Adapter
For Media Type
Air
Fitting Side 1 Connection Type
Push-to-Connect
Fitting Side 2 Connection Type
Universal Thread

Description

The AIGNEP USA - 31082260 is a part belonging to the "Push On Hose Fittings" category. This specific product, referred to as a "Push-Fit Fitting", is ideally suited for particular air-based uses. It operates as a connector between different components, constructed from metallic substances like Nickel Plated Brass. The fitting is capable of enduring a maximum operational pressure up to 290 psi. As an adapter-type fitting, it can adapt to a variety of applications across numerous industrial environments.

Key Features:

  • Holds recognized compliance with international standards including ISO 14743:2004 and PED 2014/68/UE.
  • Made with Nickel Plated Brass.
  • Specifically designed to serve Air applications.
  • Features a Push-to-Connect x Universal connection type.
  • Displaying a Nickel-Plated exterior finish in a vibrant Silver color.
  • Supports a wide variety of tube materials such as Copper, Nylon, Polyethylene, and Polyurethane.
  • Able to endure operational temperatures from 0 to 160 Degrees F.
  • Boasts an overall length of 31/32 inches and a head size of 35/64 inches.
  • Compatible with 5/16 inch tube size and able to connect to 1/8 inch pipes.
  • Includes pre-applied thread sealant.

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
