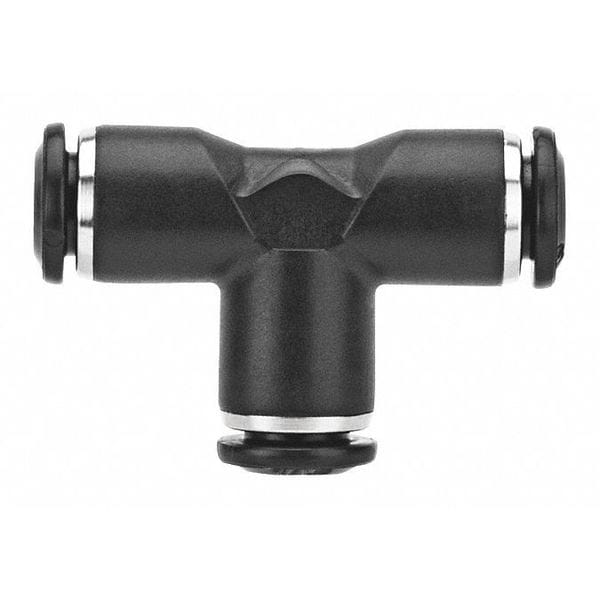

Push-Fit Tee Fitting, Push-to-Connect x Push-to-Connect x Push-to-Connect, 12mm Tube OD

  • Mfr # 55230-12

  • Zoro # G5097955

product price:  $5.25
/ea

Key Features

Material
Plastic/Metal Combination
Max. Pressure
250 psi
Connection Type
Push-to-Connect x Push-to-Connect x Push-to-Connect
Tube Size
12mm
Standards
ISO 14743:2004, PED 2014/68/UE, 1907/2006 (REACH), 2011/65/CE (RoHS)
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
55230-12
Zoro #
G5097955
UPC #
-
Country of Origin
Germany

Dimensions

Tube Size
12mm
Overall Length
2 13/32 in
Fitting Side A Tube Outer Diameter
12 mm
Fitting Side B Tube Outer Diameter
12 mm
Fitting Side C Tube Outer Diameter
12 mm
Fitting Side 2 Tube Outer Diameter
12 mm
Fitting Side 3 Tube Outer Diameter
12 mm
Fitting Side 1 Tube Outer Diameter
12 mm
Wire Rope Length
2 13/32 in

Details

Item
Push-Fit Tee Fitting
Material
Plastic/Metal Combination
Max. Pressure
250 psi
Connection Type
Push-to-Connect x Push-to-Connect x Push-to-Connect
Standards
ISO 14743:2004, PED 2014/68/UE, 1907/2006 (REACH), 2011/65/CE (RoHS)
Application
Air
Temp. Range
0 Degrees to 160 Degrees F
Fitting Shape
Tee
Gasket Material
NBR70
Fittings Sub-Category
Tees
Body Material
Composite
Compliance
EN331, REACH, ROHS
Color
Black
System of Measurement
Metric
Fitting Side A Connection Type
Push-to-Connect
Minimum Operating Temperature
0 Degrees F
Maximum Operating Temperature
160 Degrees F
Fitting Side C Connection Type
Push-to-Connect
Maximum Operating Pressure
250 psi
Fitting Material
Nylon
Compatible Tube Material
FEP, Nylon, Polyethylene, Polyurethane, PTFE
Release Type
Collet
Includes Pre-Applied Thread Sealant
Pre-Applied Thread Sealant Not Included
Fitting Side B Connection Type
Push-to-Connect
Finish/Coating
Nickel Plated
Operating Temperature - Minimum
0 Degrees F
Fitting Side 1 Connection Type
Push-to-Connect
Fitting Side 3 Connection Type
Push-to-Connect
Fitting Side 2 Connection Type
Push-to-Connect
For Media Type
Compressed Air
Operating Pressure - Maximum
290 psi
Operating Temperature - Maximum
160 Degrees F

Description

The AIGNEP USA - 55230-12 is classified under Push On Hose Fittings and stands out for its fundamental yet crucial functionality. This fitting is utilized in various applications where hose-tube connections serve a critical role. It is crafted to function under a maximum pressure of 250 psi with performance dependent on specified conditions. The ability to function across a temperature spectrum from -20 to 212 degrees Fahrenheit, expands its applicability into diverse environments.


Key Features:

  • Made of Zinc-Plated Steel, commonly used for its properties of durability and resistance to corrosion.
  • Holds a maximum working pressure of 250 psi within specified conditions.
  • Has a temperature range of -20 to 212 degrees Fahrenheit, enabling its use in a broad range of environments.
  • Features a 3/4" NPT Male thread, which is a standard size, contributing to its general compatibility with common hoses and tubes.
  • Accommodates tubes of 3/4 inch size, making it versatile in various commercial and industrial applications.

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
