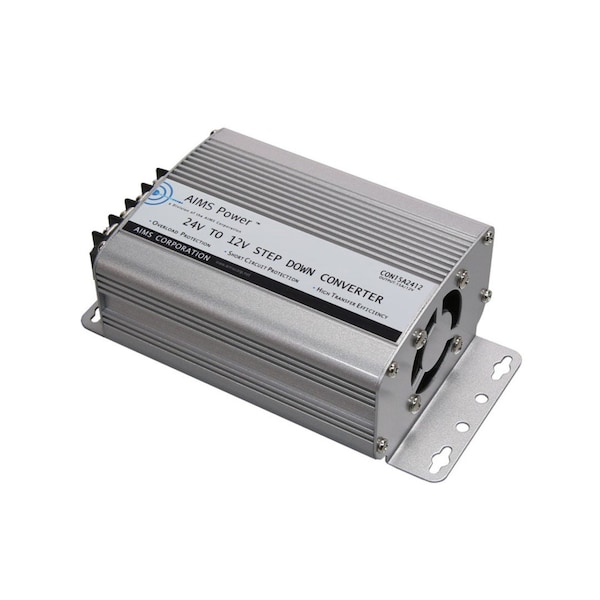

DC to DC Converter, 24V DC to 12V DC, 0 Hz, Aluminum

  • Mfr # CON15A2412

  • Zoro # G4429610

product price:  $66.99
/ea

Key Features

Converts
24V DC to 12V DC
Enclosure Material
Aluminum
Frequency
0 Hz
Height
2.20 in
Width
3.39 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CON15A2412
Zoro #
G4429610
UPC #
840271003061
Country of Origin
Taiwan, Province of China

Dimensions

Height
2.20 in
Width
3.39 in
Depth
5.91 in
Length
5.91 in

Details

Item
DC to DC Converter
Converts
24V DC to 12V DC
Enclosure Material
Aluminum
Frequency
0 Hz
Includes
Converter
Application
Converter for use in negative ground systems
Features
15 Amp 24 volt to 12 volt dc to dc converter, Green LED on front panel to confirm power on, Terminal block for DC input/output, Over Temperature protection, Over Load protection, DC Input Low Battery Shutdown, DC Input High Battery Shutdown, DC Output Short Protection, DC Output Over Current Protection, DC Output Over Voltage Protection, Transformer based, Aluminum case for optimal cooling, Instruction manual, Free 1 year tech support, 1 Year Warranty Parts and Labor, CE EN61000-6-3:2007+A1:2011, CE EN61000-6-1:2007
Type
Non-Isolated
Inverter Input Voltage
20V to 37V DC
Inveter Output Voltage
12.5V-13.5V DC
Specification
DC Input Voltage: 20-37 Vdc;DC Output Voltage: 12.5-13.5 Vdc;Output Current: 15 amps;Output Current Max: 18 amps;Non-Isolated;Conversion Effiency: >90%;DC Input Low Battery Shutdown: 18 +/- 1 V;DC Input High Battery Shutdown: >38Vdc;DC Input Over Current Protection: 10A Fuse;DC Input Polarity Protection: Fuse Protected;Over Temperature Protection: 150 +/- 5 degrees F;DC Output Short Protection: Yes;DC Output Over Current Protection: 18 amps;DC Output Over Voltage Protection: TVS Diode;Dimensions:Unit Weight: 0.91 lbs.Unit Size L x W x H: 5.91 x 3.39 x 2.2 inchesShipping Weight: 1 lbs.;Unit Weight: 0.91 lbs.;Unit Size L x W x H: 5.91 x 3.39 x 2.2 inches;Shipping Weight: 1 lbs.
Conversion Efficiency
>90%
Color
Gray
Output Current Max
18 Amps
For Use With
Negative ground systems

Description

Converter,15A,24VDC to 12VDC
