  11. DC to DC Converter, 24V DC to 12V DC, 0 Hz

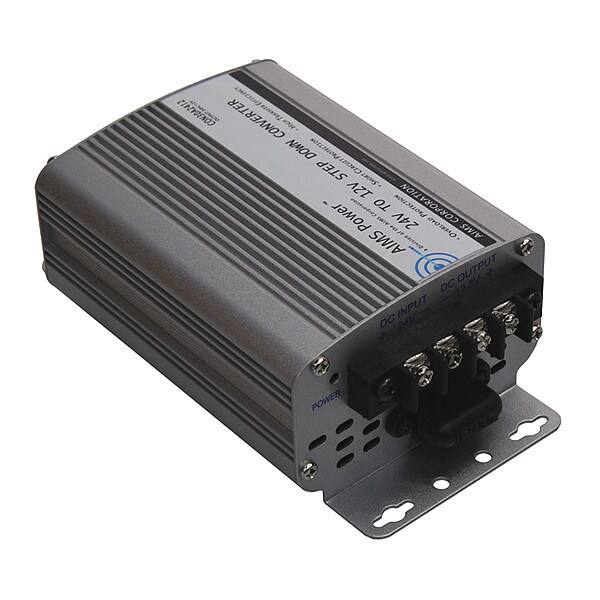

Aims Power DC to DC Converter, 24V DC to 12V DC, 0 Hz CON60A2412 - main

DC to DC Converter, 24V DC to 12V DC, 0 Hz

  • Mfr # CON60A2412

  • Zoro # G6931071

product price: $162.99
/ea
Free Shipping & Returns

Key Features

Converts
24V DC to 12V DC
Frequency
0 Hz
Height
2.20 in
Width
3.39 in
Depth
7.17 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CON60A2412
Zoro #
G6931071
UPC #
840271003283
Country of Origin
Taiwan, Province of China

Dimensions

Height
2.20 in
Width
3.39 in
Depth
7.17 in

Details

Item
DC to DC Converter
Converts
24V DC to 12V DC
Frequency
0 Hz
Features
60 Amp 24 volt to 12 volt dc to dc converter;Green LED on front panel to confirm power on;Terminal block for DC input/output;Over Temperature protection;Over Load protection;DC Input Low Battery Shutdown;DC Input High Battery Shutdown;DC Output Short Protection;DC Output Over Current Protection;DC Output Over Voltage Protection;Transformer based;Aluminum case for optimal cooling;Instruction manual;Free 1 year tech support;1 Year Warranty Parts and Labor;CE EN61000-6-3:2007+A1:2011;CE EN61000-6-1:2007
Specification
Dimensions: DC Input Voltage: 20-37 Vdc;DC Output Voltage: 12.5-13.5 Vdc;Output Current: 60 amps;Output Current Max: 72 amps;Non-Isolated;Conversion Effiency: >90%;DC Input Low Battery Shutdown: 18 +/- 1 V;DC Input High Battery Shutdown: >38Vdc;DC Input Over Current Protection: 30A Fuse;DC Input Polarity Protection: Fuse Protected;Over Temperature Protection: 150 +/- 5 degrees F;DC Output Short Protection: Yes;DC Output Over Current Protection: 72 amps;DC Output Over Voltage Protection: TVS Diode;Unit Weight: 2.0 lbs.;Unit Size L x W x H: 5.91 x 3.39 x 2.2 inches;Shipping Weight: 2 lbs.

Description

DC to DC Converter,60A,24V to 12V

Restrictions

WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
