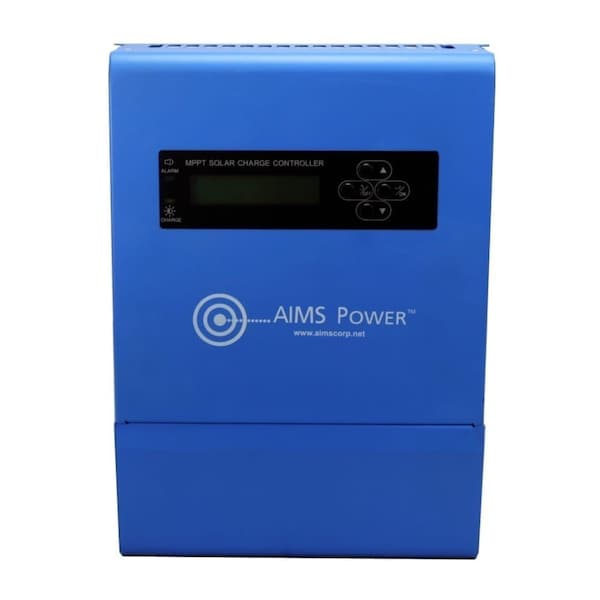

MPPT Solar, Charge Controller, 40A

Uses the latest PWM charging technology and state of charge monitoring, adjusts charging based on battery voltage prolonging overall battery life, LCD displays key information such as battery voltage, solar panel voltage, solar panel charging current and load discharging current., PV input, battery output and load control ports, Industrial grade case, Adjustable voltages, Extremely east to set up, Dual USB outlets, 4 Pre-drilled holes for easy mounting, CE, ETL to UL1741 and RoHS compliant, 2 Year warranty, , , , , , , , , , ,

ELECTRICALPV Operating Voltage: Rated PV input: CHARGING;MECHANICAL;15-150Vdc@12V;34-150Vdc@24V;50-150Vdc@36V;60-150Vdc@48V;12V – 500 Watts;24V – 1000 watts;36V – 1500 watts;48V – 2000 watts;Maximum battery current: 40 amps;DC load port: 40 amps;Max PV open circuit voltage: 150Vdc;Self power consumption: <4 watts;Efficiency: 97.5%;Protections: overload, short circuit, high voltage, high temperature, low voltage and auto correct;Monitoring: RS485 port for computer monitoring;Optimal cooling case design – built for extreme conditions;Battery types: gel, sealed, AGM, flooded, lithium, user defined (adjustable voltage);4 Stage charging: bulk, absorption, float and equalize;Bulk charge voltage: sealed 14.4V, AGM/gel 14.2V, flooded 14.6V, user defined 10-15V;Float charge voltage: sealed/AGM/gel 13.7V, flooded 13.6V, user defined 10-15V;Equalize charge voltage: sealed 14.6V, AGM/gel 14.8V, flooded 14.8V, user defined 10-15V;Low voltage reconnection: 12.5V;Low voltage disconnect voltage: 10.5V (10.5-12.5V adjustable);Enclosure: IP43 protection, metal;Cooling: heatsink;Humidity: 100% non-condensing;Temperature compensation: -5mV°C / 2V with BTS;Temperature range: -25°C to 60°C or -13°F to 140°F;Conformal coated for marine environments;Wire knockouts: 1.25";Unit weight: 8 lbs;Boxed weight: 9 lbs;Dimensions: 10.6"L x 7.25"W x 3.5"H;Warranty: 2 years;Certifications: ETL to UL1741, CE, RoHS, CETL
