  5. Power Inverter, Pure Sine, 9,000 W Peak, 3,000 W Continuous, 2 Outlets

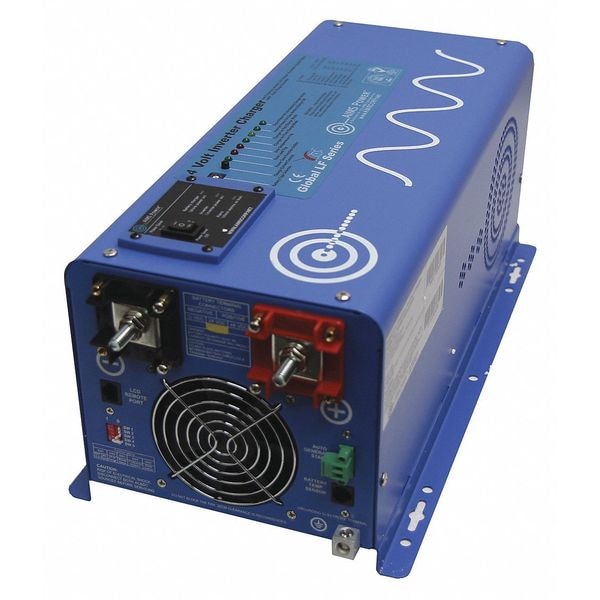

Aims Power Power Inverter, Pure Sine, 9,000 W Peak, 3,000 W Continuous, 2 Outlets PICOGLF30W24V120VR - main
Shop AIMS POWER

Power Inverter, Pure Sine, 9,000 W Peak, 3,000 W Continuous, 2 Outlets

  • Mfr # PICOGLF30W24V120VR

  • Zoro # G2007741

product price:  $1,205.09
/ea
Free Shipping & Returns

Key Features

Peak Output Power
9,000 W
Continuous Output Power
3,000 W
Inverter Output Form
Pure Sine
Inverter Input Voltage
24V DC
Inverter Output Voltage
120V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PICOGLF30W24V120VR
Zoro #
G2007741
UPC #
840271002477
Country of Origin
China

Dimensions

Inverter Width
8.7 in
Charger Height
7.1 in
Charger Depth
16.5 in
Inverter Height
7.1 in
Inverter Depth
16.5 in
Charger Width
8.7 in
Width
8.74 "
Height
7.10"
Depth
16.48"

Details

Item
Power Inverter
Peak Output Power
9,000 W
Continuous Output Power
3,000 W
Inverter Output Form
Pure Sine
Inverter Input Voltage
24V DC
Inverter Output Voltage
120V AC
Outlet Type
GFCI
DC Connection
Battery Cables
Number of Outlets
2
Automatic/Manual
Automatic
Charger Output Voltage
120V
Charger Input Voltage
120V AC
Application
Emergency Back Up/ Off-Grid
Charger Output Amps
30
Nominal Output Power
3,000 W
Charger Input Amps
12.5
Case Material
Sheet Metal
Standards
ISO-9001
Features
Auto Frequency
Weight
56 lb
Inveter Output Voltage
Depends On Battery Type
Output Frequency
50/60 Hz
Number of USB Ports
0
Number of USB-C Ports
0
Charger Input Current
12.5 A
Connection Location
connects to battery bank and requires 150 A fuse
Input Voltage
20 to 32 VDC
Output Voltage
120V AC
Efficiency
88 %
Charger Output Current
30 A
Specification
SpecificationsInverter Output Specifications: Input Specifications;Charger Specifications;Dimensions;Continuous Output Power: 3000 Watts;Surge Rating: 9000 Watts (20 Seconds);Output Waveform: Pure Sine/Same as input (Bypass Mode);Nominal Efficiency: >88% (Peak);Line Mode Efficiency: >95%;Output Frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz;Typical Transfer Time: 10ms (Max);THD: < 10% DC;Ambient Operating Temperature: 14°F to 122°F (-10°C to 50°C);Nominal Input Voltage: 24.0Vdc;Minimum Start Voltage: 20.0Vdc;Low Battery Alarm: 21.0Vdc-22.0Vdc;Low Battery Trip: 20.0Vdc-21.0Vdc;High Voltage Alarm: 32.0Vdc;Low Battery Voltage Restart: 26.6Vdc;Idle Consumption: 46.5 Watts;Power Saver Mode Idle Consumption: 18.9 Watts;Output Voltage: Depends on battery Type;Charger Rate: 40A;Unit Weight: 56 lbs.;Unit Size L x W x H: 16.48 x 8.74 x 7.1 inches;Shipping Weight: 64 lbs.;Shipping L x W x H 23.5 x 13.0 x 12.5 inches
Cooling Method
Forced Air

Description

Inverter Charger, Inverter Output Form Pure Sine Wave, DC Connection Post, Continuous Output Power 3,000 W, Peak Output Power 9,000 W, Number of Outlets 2, Inverter Input Voltage 24V DC, Inverter Output Voltage 120V AC, Charger Input Voltage 120V AC, Charger Output Voltage 120V, Output Frequency 50/60 Hz, Efficiency 88 Percent, Number of USB Ports 0, Number of USB-C Ports 0, Case Material Sheet Metal, Weight 56 lb, Cooling Method Forced Air
