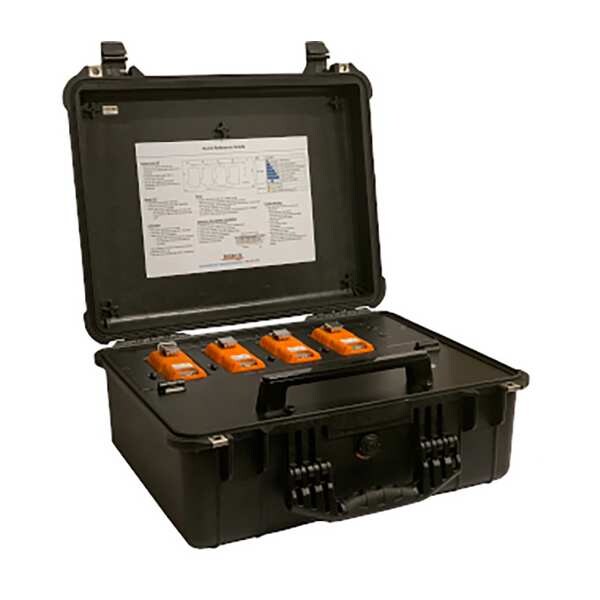

Aimsafety Calibration and Bump Test Station, PM100-STN - main

Calibration and Bump Test Station,

  • Mfr # PM100-STN

  • Zoro # G104846747

product price: $2,928.99
/ea
Free Shipping & Returns

Key Features

Gas Type
CO, H2S, O2
Features
Automatic Update Pm100 Configuration and Firmware, Bump Testing upto Four Pm100 Single-Gas Units at a Time, Calibrating upto Four Pm100 Single-Gas Units at a Time, Event Logging Through PC or PM Link
Height
8 1/8 in
Width
20 5/8 in
Test Time
Bump 20 sec, Calibration 90 sec
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PM100-STN
Zoro #
G104846747
UPC #
-
Country of Origin
Slovakia

Dimensions

Height
8 1/8 in
Width
20 5/8 in
Length
16 7/8 in
Cylinder Size
58 L, 103 L, 105 L, 116 L
Test Stand Width
20.63 in
Test Stand Height
8.13 in
Test Stand Depth
16.87 in
Manufacturer Warranty Length
2 yr

Details

Item
Calibration and Bump Test Station
Gas Type
CO, H2S, O2
Features
Automatic Update Pm100 Configuration and Firmware, Bump Testing upto Four Pm100 Single-Gas Units at a Time, Calibrating upto Four Pm100 Single-Gas Units at a Time, Event Logging Through PC or PM Link
Test Time
Bump 20 sec, Calibration 90 sec
For Use With
AimSafety PM100-CO, AimSafety PM100-H2S, AimSafety PM100-O2
Includes
Cylinder Straps, Exhaust Tube Adapter, Inlet Tube Adapter, Power Charger, Rugged Case, USB Stick
Shut Off
Automatic
Cylinder Capacity
58 L/103 L/105 L/116 L
Flow Rate
3 lpm
Power Source
AC Adapter, Battery
Temp. Range
41 Degrees to 104 Degrees F
Material
Polypropylene/Aluminum
Voltage
110V AC
Status Indicator
LED/Pressure Gauge
Product Type
Calibration Kit
Data Logger
Yes
Mount Type
Freestanding
Compatible Detector Manufacturer Part Number
PM100-CO, PM100-H2S, PM100-O2
Digital Memory Capacity
8 GB
Display Type
Analog
For Cylinder Volume
58 L, 103 L, 105 L, 116 L
Chemical Formula
CH4, CO, H2S, O2
Visual Alert Type
Multicolor LED
Sub-Brand
AimSafety
Alert Type
Internal Buzzer, Light, Sound
Communication Protocol
PC-Compatible Interface, USB
Compatible Systems and Services
Windows 10, Windows 11, Windows 7, Windows 9
Flow Rate - Maximum
3 lpm
Series
PM100 Series
Operating Temperature - Minimum
41 Degrees F
For Gas Type
Carbon Monoxide, Dioxygen, Hydrogen Sulfide
Test Stand Material
Aluminum, Polypropylene
Operating Temperature - Maximum
104 Degrees F
Operating Voltage
110V AC
Includes Batteries
Yes
Battery Chemistry
Lithium Ion
Includes Software
Yes
For Number of Units
4

Description

Calibration and Bump Test Station, Product Type Calibration Kit, Includes Cylinder Straps, Exhaust Tube Adapter, Inlet Tube Adapter, Power Charger, Rugged Case, USB Stick, Mounting Location Floor, Portable/Handheld, Tabletop, Visual Alert Type Multicolor LED, Display Type Analog, Power Source AC Adapter, Battery, Mount Type Freestanding, Communication Protocol PC-Compatible Interface, USB, Data Logger Yes, Compatible Systems and Services Windows 10, Windows 11, Windows 7, Windows 9
