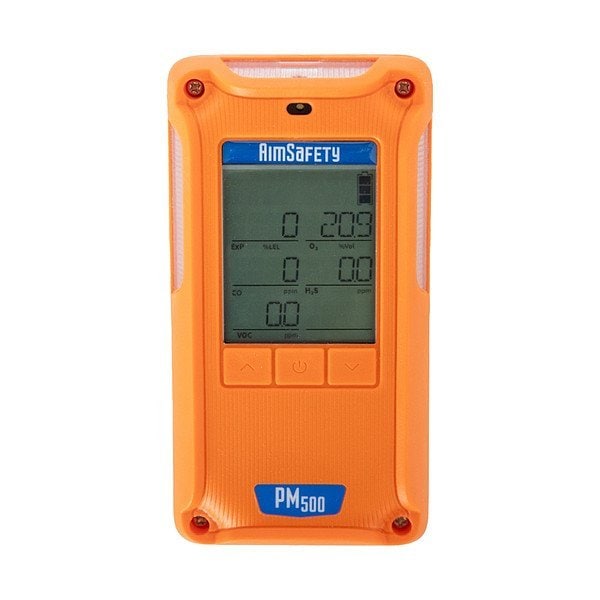

PM500 Multi-Gas Detector, IP67, LCD, 5 day Battery Life

  • Mfr # PM500-IR

  • Zoro # G016307527

product price:  $1,751.99
/ea
Free Shipping & Returns

Key Features

Gas Detected
Carbon Monoxide, Combustible Gas, Hydrogen Sulfide, Oxygen
Alarm Setting
Carbon Monoxide (35 to 200 ppm, TWA 35 ppm, STEL 100 ppm), Hydrogen Sulfide (10 to 15 ppm, STEL 15 ppm, TWA 10 ppm, CAL 25 ppm), LEL (10% to 20% LEL), Oxygen (19.5% to 19.5% Vol.)
Battery Life
5 day
Standards
ATEX, EMC, IECEx, INMETRO, UL/CSA
IP Rating
IP67
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
PM500-IR
Zoro #
G016307527
UPC #
-
Country of Origin
Korea, Republic of

Dimensions

Overall Height
1.7 in
Overall Width
3 in
Manufacturer Warranty Length
2 yr
Overall Depth
5.7 in
Battery Size
3.7V

Details

Item
Multi-Gas Detector
Gas Detected
Carbon Monoxide, Combustible Gas, Hydrogen Sulfide, Oxygen
Alarm Setting
Carbon Monoxide (35 to 200 ppm, TWA 35 ppm, STEL 100 ppm), Hydrogen Sulfide (10 to 15 ppm, STEL 15 ppm, TWA 10 ppm, CAL 25 ppm), LEL (10% to 20% LEL), Oxygen (19.5% to 19.5% Vol.)
Battery Life
5 day
Standards
ATEX, EMC, IECEx, INMETRO, UL/CSA
IP Rating
IP67
Series
PM500
Display Screen Type
LCD
Chemical Formula
CO, H2S, IR, LEL, O2
Alarm Setting Adjustment
Adjustable Alarm Setting
Mount Type
Clip
Includes Probe
No
Temperature Code
T4
Alarm Volume Level
90 dB
Number of Sensors
1
Operating Temperature - Maximum
122 Degrees F
Features
Intrinsically Safe
Resolution
1% LEL, Carbon Monoxide 1 ppm, Hydrogen Sulfide 0.1 ppm, Oxygen 0.1% Vol.
Status Indicator
Audible, LCD Display, LED
Maintainability
Maintainable
Interchangeable Sensors
Yes
Operating Humidity - Minimum
10 %
Hazardous Location Specification
Class I, Divisions 1, Groups A, B, C, and/or D, T4, Class I, Divisions 1, Groups C, and/or D, T4 Class I, Zone 1, AEx db ia IIB T4 Gb(Ex db ia IIB T4 Gb), Class I, Zone 1, AEx db ia IIC T4 Gb(Ex db ia IIC T4 Gb)
Operating Humidity - Maximum
90 %
Data Logger
Yes
Battery Voltage
3.7 V
Sensor Life
2 yr (O2), 5 yr (LEL)
Power Source
Battery
Visual Alert Type
LCD Alarm Display
Communication Protocol
PC-Compatible Interface
Resistance Properties
Dust Resistant, Water Resistant
Rechargeable Battery
Yes
Sensor Type
Infrared
Display Type
Digital
Battery Chemistry
Lithium Ion
Housing Color
Blue, Orange
Number of Gases Detected
4
Alert Type
Light, Sound, Vibration
Housing Material
Polycarbonate; Thermoplastic Polyurethane
Number of Records Stored
30 Events
Operating Voltage
3.7V
Measurement Range
Carbon Monoxide (0 to 500 ppm), Combustible (0 to 100% LEL), Hydrogen Sulfide (0 to 30 ppm), Oxygen (0 to 30% Vol.)
Sub-Brand
AimSafety
Operating Temperature - Minimum
-4 Degrees F
Replaceable Battery
Yes
For Environment
Hazardous Locations
Includes
Dust Filter and PTFE Filter, Quick Disconnector and Tubing, Universal Charging Adapter
Product Type
Multi-Gas Detector

Description

Multi-Gas Detector, Replaceable Battery Yes, Product Type Multi-Gas Detector, Display Screen Type LCD, Includes Probe No, Housing Color Blue, Orange, Gas Detected Carbon Monoxide, Combustible Gas, Hydrogen Sulfide, Oxygen, Communication Protocol PC-Compatible Interface, Series PM500, Sub-Brand AimSafety, Battery Size 3.7V, Number of Records Stored 30 Events, Operating Humidity - Maximum 90 Percent, Status Indicator Audible, LCD Display, LED, Rechargeable Battery Yes, Battery Voltage 3.7 V

Restrictions

Hazardous material
