  9. 20x20x2 Pleated Air Filter, High Capacity, Synthetic, MERV 7, 3.0 to 10.0 microns

This item is Discontinued.

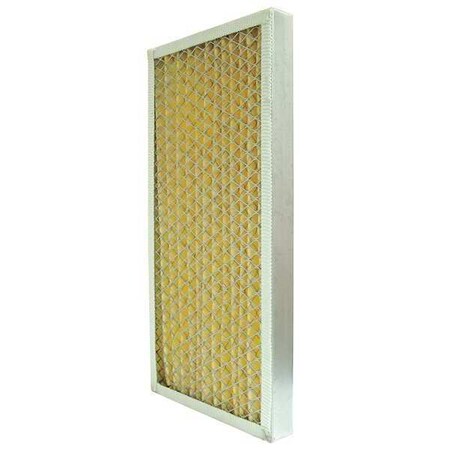

Air Handler 20x20x2 Pleated Air Filter, High Capacity, Synthetic, MERV 7, 3.0 to 10.0 microns 5M317

20x20x2 Pleated Air Filter, High Capacity, Synthetic, MERV 7, 3.0 to 10.0 microns (Discontinued)

  • Mfr # 5M317
  • Zoro # G6460641
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5M317
Zoro #
G6460641
UPC #
190735020753
Country of Origin
Multiple

Dimensions

Nominal Filter Size
20x20x2
Actual Filter Size
19-1/2 in x 19-1/2 in x 1-7/8 in
Nominal Height
20 in
Nominal Width
20 in
Nominal Depth
2 in
Actual Height
19 1/2 in
Actual Width
19 1/2 in
Actual Depth
1 7/8 in

Details

Performance Rating
MERV 7
Air Filter Capacity
High Capacity
Filters Out
Cat & Dog Dander, Cement Dust, Dust Mites, Dusting Aids, Fabric Protector, Hair Spray, MERV 5-8 Mold, Pudding Mix, Spores
Air Flow @ 300 fpm
833 cfm
Air Filter Item
High Capacity Pleated Filter
Filter Efficiency
40%
Frame or Header Material
Galvanized Steel
Filter Frame Color
White
Media Material
Synthetic
Air Flow @ 500 fpm
1,389 cfm
Item
Pleated Air Filter
Final Recommended Resistance
1.0 in in wc
Initial Resistance @ 500 fpm
0.37 in wc
Max. Temp.
400 Degrees F
Max. Velocity
500 fpm
Media Color
White
Initial Resistance @ 300 fpm
0.22 in wc
High Velocity
500 fpm
Frame Type
24 ga. Galvanized Steel
MERV
7
Style - Air Filters
Panel
Pleats per Linear Feet
16
Gasket Location
None
Common Applications
General Use
Removes Particles Down To
3.0 to 10.0 microns
Air Filter Media Type
Synthetic
High Initial Resistance
0.26"WC
Media Area
8.6 sq ft
Filter Efficiency - Air Filters
35 %
Frame Included
Yes
Gasket Material
None
Standards
UL 900 Classified
Pleats per Linear Foot
16

Description

Pleated Air Filter, Style - Air Filters Panel, Performance Rating MERV 7, Nominal Filter Size 20x20x2, Filter Efficiency - Air Filters 35 Percent, Air Filter Capacity High Capacity, Media Material Synthetic, Frame or Header Material Galvanized Steel, Common Applications High Temperature, Media Color White, Media Area 8.6 sq ft, Pleats per Linear Foot 16, Filters Out Cat & Dog Dander, Cement Dust, Dust Mites, Dusting Aids, Fabric Protector, Hair Spray, MERV 5-8 Mold, Pudding Mix, Spores
