This item is Discontinued.

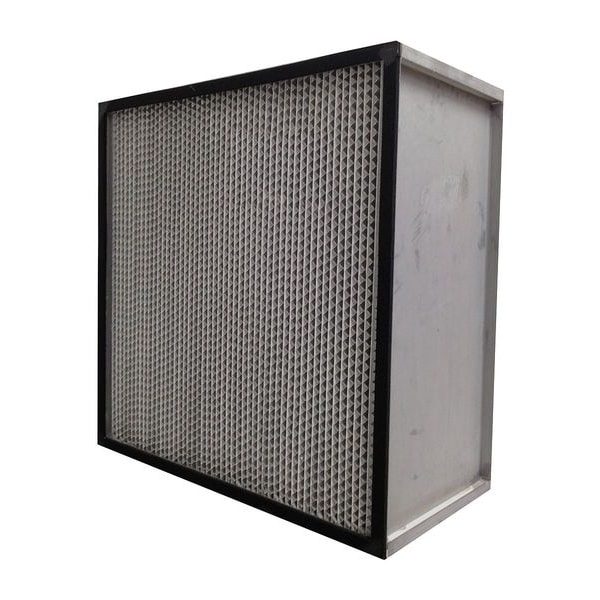

Air Handler Cartridge Air Filter, 24x24x12" 2GGR6

Cartridge Air Filter, 24x24x12" (Discontinued)

  • Mfr # 2GGR6
  • Zoro # G7628302
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2GGR6
Zoro #
G7628302
UPC #
190735008980
Country of Origin
United States

Dimensions

Nominal Filter Size
24x24x12
Nominal Depth
12 in
Nominal Height
24 in
Nominal Width
24 in
Actual Filter Size
23-3/8 in x 23-3/8 in x 11-1/2 in
Actual Width
23 3/8 in
Header Size
13/16"
Actual Height
23 3/8 in
Actual Depth
11 1/2 in

Details

Performance Rating
MERV 13
Air Filter Header Type
Double Header
Gasket Location
None
Air Flow
500 fpm
Media Color
White
Recommended Final Resistance
1.5 in wc
Item
Cartridge Air Filter
Frame or Header Material
Steel
Header
Double
Media Material
Microfiber
Collapsible
No
Frame Included
Yes
Air Filter Item
Cartridge Air Filter
Max. Velocity
625 fpm
Filters Out
MERV 13-16 All Bacteria, Droplet Nuclei (Sneeze), Cooking Oil, Most Smoke, Insecticide Dust, Most Face Power, Paint Pigments, Most Tobacco Smoke, Copier Toner
MERV
13
Max. Air Flow
625 fpm
Initial Resistance @ 500 fpm
0.52 in wc
Air Flow @ 300 fpm
1,200 cfm
Frame/Header Material
Corrosion Resisitant Steel
Standards
UL Classified
Style - Air Filters
Box
Media Area
105 sq ft
Final Recommended Resistance
1.50" WC
Filter Efficiency - Air Filters
85 %
Filter Efficiency
85%
Gasket Material
None
Initial Resistance
0.50" WC
Max. Temp.
250 Degrees F
Removes Particles Down To
0.3 to 1.0 microns
Media Separator Construction
Aluminum

Description

Cartridge Air Filter, Style - Air Filters Box, Performance Rating MERV 13, Nominal Filter Size 24x24x12, Filter Efficiency - Air Filters 85 Percent, Media Material Microfiber, Frame or Header Material Steel, Air Filter Header Type Double Header, Gasket Location None, Gasket Material None, Media Color White, Media Area 105 sq ft, Media Separator Construction Aluminum
