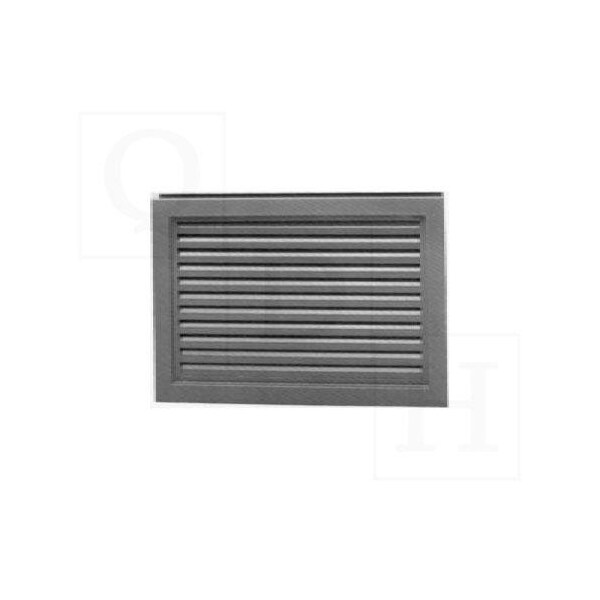

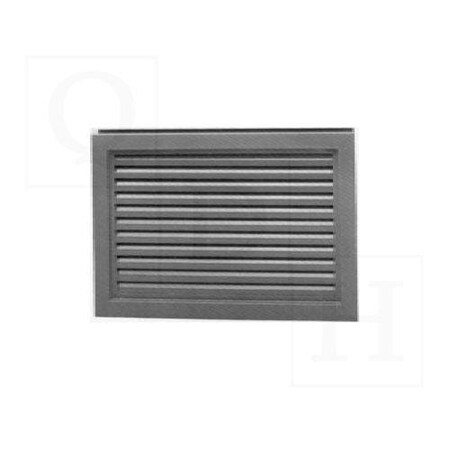

800A1-24X18-BZ Metal Door Louver with Inverted Y Blades Selfattaching Powder Coat Bronze (Discontinued)

Air Louvers 800A1-24X18-BZ Metal Door Louver with Inverted ''Y'' Blades Self-attaching Powder Coat Bronze Finish Inverted ''Y'' Blades Recommended for Schools, Class ''A'' and Institutional Buildings with Non-Vision Construction and 4 Mounting Options Material: 18 gauge CRS frame and 20 gauge blades. Min size 6'' x 4 Max 48'' x 80''. Louvers:Inverted ''Y'' blades with 1'' blade spacing are attached by interlocking construction to the 1'' deep, welded frame. Non-vision. Multiple sections can be combined for larger sizes. 800A1 Frame:Self-attaching frame with 1-1/4'' trim, mitered, and welded corners. Screws fasten through the frame into the louver core, leaving the corridor side of the frame free of fasteners. Door: 1-3/4'' Any Style. Door cutout = order size.1 3/8''-1 3/4'' - 800CORE, 800C, 800A. Fasteners: Phillips head screws #8 x 3/4''. Free Flow Area: 50% free area.
