Shop AIR SYSTEMS INTL

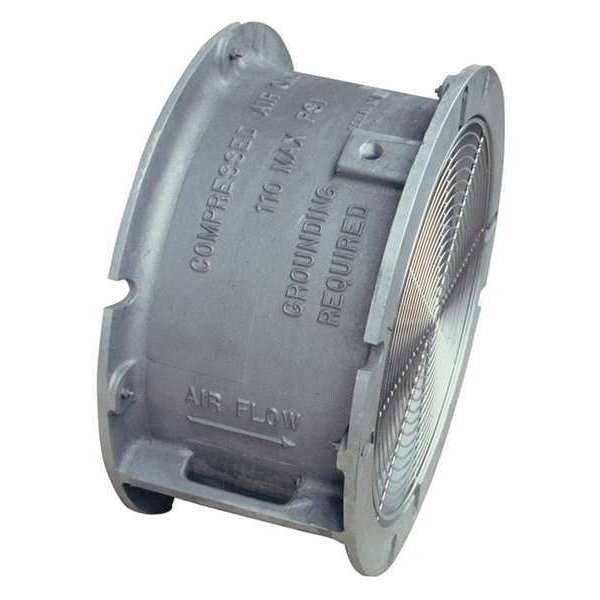

20 In. Diameter Circular Pneumatic Fan

  • Mfr # ASI-JF20
  • Zoro # G5214651

product price:
$
5,282.99
/ea
Additional $200.00 delivery surcharge applies per item.
See details

Key Features

Inlet Connection
3/4 in NPT
Base Dia.
20 in
Air Consumed @ 40 PSIG
40 cfm
Total Air Flow @ 70 PSIG
6,000 cfm
Air Consumed @ 70 PSIG
120 cfm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
ASI-JF20
Zoro #
G5214651
UPC #
-
Country of Origin
United States
Item
Jet Fan
Inlet Connection
3/4 in NPT
Air Consumed @ 40 PSIG
40 cfm
Total Air Flow @ 70 PSIG
6,000 cfm
Air Consumed @ 70 PSIG
120 cfm
Max. Inlet Pressure
110 psi
Includes
Chicago Fitting, Grounding Wire
Total Air Flow @ 60 PSIG
7,600 cfm
Base Material
Cast Aluminum
Air Consumed @ 90 PSIG
200 cfm
Total Air Flow @ 50 PSIG
3,000 cfm
Air Consumed @ 80 PSIG
186 cfm
Housing Material
Aluminum
Application
Positive/Negative Flow, Ventilation with Compressed Air or Steam of Hazardous or Explosive Vapors, Welding Fumes
Air Consumed @ 50 PSIG
70 cfm
Air Consumed @ 60 PSIG
114 cfm
Total Air Flow @ 40 PSIG
2,920 cfm
Total Air Flow @ 90 PSIG
10,000 cfm
Total Air Flow @ 80 PSIG
9,100 cfm
Maximum Inlet Pressure
110 psi
Air Inlet Type
NPT
Air Inlet Gender
Female
Hazardous Location Rating
Class I, Div 1 and 2, Group A, B
Material
Aluminum
Maximum Flow in Free Air
10,400 cfm
Intrinsically Safe
Intrinsically Safe
Traction Material
Aluminum

Dimensions

Base Dia.
20 in
Overall Length
20 1/2 in
Air Inlet Connection Size
3/4 in
Base Diameter
20 in
Wire Rope Length
20 1/2 in
Length
20 1/2 in
Duct Diameter
1 in

Description

Jet Fan, Air Inlet Connection Size 3/4 in, Air Inlet Gender Female, Air Inlet Type NPT, Includes Chicago Fitting, Grounding Wire, Maximum Inlet Pressure 110 psi, Duct Diameter 1 in, Maximum Flow in Free Air 10,400 cfm, Material Aluminum, Length 20 1/2 in
