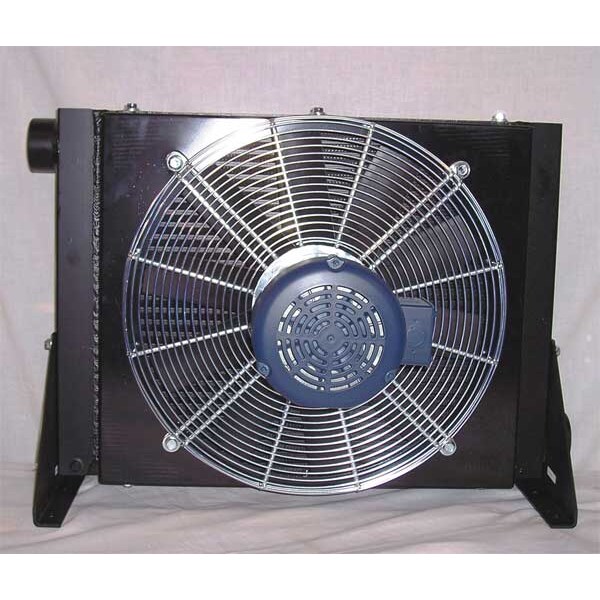

Akg Air Aftercooler, Max HP 125,785 CFM CC600-1 - main

Air Aftercooler, Max HP 125,785 CFM

  • Mfr # CC600-1

  • Zoro # G2138705

product price: $2,809.99
/ea
Item requires special delivery charges. A $190.00 per item surcharge will be applied.

Key Features

Max. Compressor
125
Max. Pressure (PSI)
250 psi
Fan HP
1
Voltage
115/230V AC
Tube Material
Aluminum
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CC600-1
Zoro #
G2138705
UPC #
-
Country of Origin
United States

Dimensions

Height (In.)
23.19 in
Width (In.)
30.31 in
Depth (In.)
18.74 in
Overall Height
23 3/16 in
Air Outlet Size
2 in
Overall Width
30 1/4 in
Overall Depth
18 11/16 in
Air Inlet Size
2 in

Details

Max. Compressor
125
Max. Pressure (PSI)
250 psi
Fan HP
1
Voltage
115/230V AC
Tube Material
Aluminum
Junction Box
Single Point Electrical
Includes
Mounting Legs
Max. Amps
12.8/6.4 A
Shell Material
Steel
Min. Pressure (PSI)
60 psi
Application
Removes Harmful Water, Oil and Contaminants from Compressed Air System
Fin Material
Aluminum
Max. Flow CFM @ 100 PSI
785 cfm
Item
Air Cooled Aftercooler
NPT Inlet/Outlet Air (In.)
2 in
Standards
CSA Certified, UL Listed
Max. Temp. (F)
350 Degrees F
Construction
Aluminum
For Use With
Rotary Air Compressor
Minimum Operating Pressure
60 psi
Features
Reduced Air Slide Fouling
Maximum Operating Temperature
350 Degrees F
Current Rating
6.4 A
Cooling Method
Air
Maximum Operating Pressure
250 psi
Maximum Air Flow
785 cfm
Air Outlet Connection Type
NPT
Air Inlet Connection Type
NPT
Frequency
60 Hz
Phase
Single
Maximum Fan Horsepower
1 hp
Junction Box Design
Single Point Electrical
Maximum Compressor Output Power
100 hp

Description

Air Cooled Aftercooler, Maximum Compressor Output Power 100 hp, Maximum Air Flow 785 cfm, Air Inlet Size 2 in, Air Inlet Connection Type NPT, Maximum Operating Temperature 350 Degrees F, Maximum Operating Pressure 250 psi, Overall Height 23 3/16 in, Overall Width 30 1/4 in, Overall Depth 18 11/16 in, Phase Single, Voltage 115/230V AC, Maximum Fan Horsepower 1 hp, Air Outlet Connection Type NPT, Air Outlet Size 2 in, Construction Aluminum, Cooling Method Air, Current Rating 6.4 A
