  11. Air Aftercooler, Max HP 700,4316 CFM

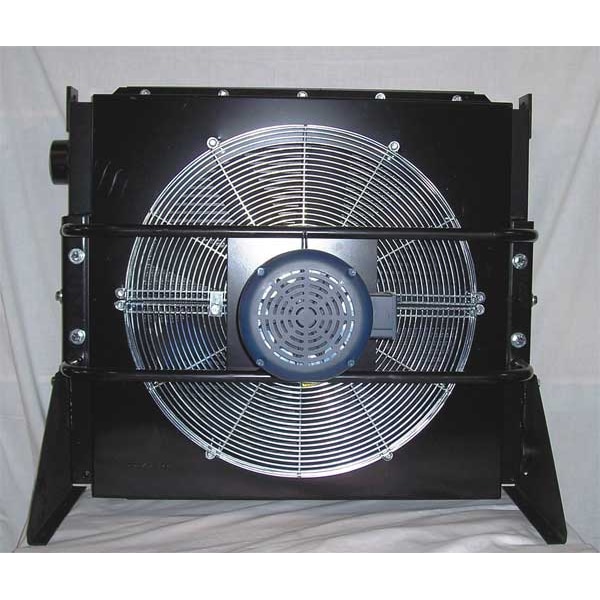

Akg Air Aftercooler, Max HP 700,4316 CFM CC2500-3 - main

Air Aftercooler, Max HP 700,4316 CFM

  • Mfr # CC2500-3

  • Zoro # G2138669

product price: $10,120.99
/ea
Item requires special delivery charges. A $300.00 per item surcharge will be applied.

Key Features

Max. Compressor
700
Max. Pressure (PSI)
250 psi
Fan HP
7 1/2
Voltage
230/460V AC
Height (In.)
44.25 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CC2500-3
Zoro #
G2138669
UPC #
-
Country of Origin
United States

Dimensions

Height (In.)
44.25 in
Width (In.)
48.82 in
Depth (In.)
30.28 in
Overall Height
44 1/4 in
Air Inlet Size
4 in
Overall Width
48 13/16 in
Overall Depth
30 1/4 in
Air Outlet Size
4 in

Details

Max. Compressor
700
Max. Pressure (PSI)
250 psi
Fan HP
7 1/2
Voltage
230/460V AC
Tube Material
Aluminum
Junction Box
Single Point Electrical
Min. Pressure (PSI)
60 psi
Item
Air Cooled Aftercooler
Max. Flow CFM @ 100 PSI
4,316
Fin Material
Aluminum
Includes
Mounting Legs
NPT Inlet/Outlet Air (In.)
4 in
Standards
CSA Certified, UL Listed
Max. Amps
19.6/9.8 A
Max. Temp. (F)
350 Degrees F
Application
Removes Harmful Water, Oil and Contaminants from Compressed Air System
Shell Material
Steel
For Use With
Rotary Air Compressor
Construction
Aluminum
Junction Box Design
Single Point Electrical
Maximum Fan Horsepower
7 1/2 hp
Maximum Operating Temperature
350 Degrees F
Maximum Compressor Output Power
600 hp
Air Outlet Connection Type
NPT
Frequency
60 Hz
Maximum Air Flow
4,316 cfm
Maximum Operating Pressure
250 psi
Current Rating
19.6 A
Phase
Three
Minimum Operating Pressure
60 psi
Air Inlet Connection Type
NPT
Cooling Method
Air
Features
Reduced Air Slide Fouling

Description

Air Cooled Aftercooler, Maximum Compressor Output Power 600 hp, Maximum Air Flow 4,316 cfm, Air Inlet Size 4 in, Air Inlet Connection Type NPT, Maximum Operating Temperature 350 Degrees F, Maximum Operating Pressure 250 psi, Overall Height 44 1/4 in, Overall Width 48 13/16 in, Overall Depth 30 1/4 in, Phase Three, Voltage 230/460V AC, Maximum Fan Horsepower 7 1/2 hp, Air Outlet Connection Type NPT, Air Outlet Size 4 in, Construction Aluminum, Cooling Method Air, Current Rating 19.6 A
