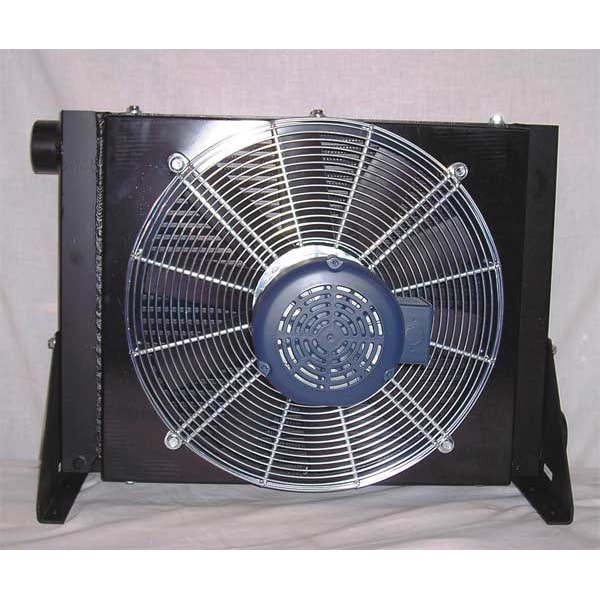

Akg Air Cooled Aftercooler, Max HP 75,539 CFM CC450-1 - main

Air Cooled Aftercooler, Max HP 75,539 CFM

  • Mfr # CC450-1

  • Zoro # G1594126

product price: $2,406.99
/ea
Additional $145.00 delivery surcharge applies per item.
See details

Key Features

Max. Compressor
75
Max. Pressure (PSI)
250 psi
Fan HP
1/2
Voltage
115/230V AC
Height (In.)
21.0 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CC450-1
Zoro #
G1594126
UPC #
-
Country of Origin
United States

Dimensions

Height (In.)
21.0 in
Depth (In.)
17.75 in
Width (In.)
26.38 in
Air Outlet Size
2 in
Overall Width
26 3/8 in
Air Inlet Size
2 in
Overall Depth
17 3/4 in
Overall Height
21 in

Details

Max. Compressor
75
Max. Pressure (PSI)
250 psi
Fan HP
1/2
Voltage
115/230V AC
Application
Removes Harmful Water, Oil and Contaminants from Compressed Air System
Item
Air Cooled Aftercooler
Tube Material
Aluminum
Junction Box
Single Point Electrical
Standards
CSA Certified, UL Listed
Max. Temp. (F)
350 Degrees F
NPT Inlet/Outlet Air (In.)
2 in
Min. Pressure (PSI)
60 psi
Includes
2 in FNPT Ports, Mounting Legs
Max. Flow CFM @ 100 PSI
539 cfm
Fin Material
Aluminum
Shell Material
Steel
Max. Amps
8/4 A
Construction
Aluminum
For Use With
Rotary Air Compressor
Maximum Air Flow
539 cfm
Minimum Operating Pressure
60 psi
Junction Box Design
Single Point Electrical
Air Inlet Connection Type
NPT
Maximum Fan Horsepower
1/2 hp
Phase
Single
Maximum Compressor Output Power
75 hp
Features
Reduced Air Slide Fouling
Maximum Operating Pressure
250 psi
Current Rating
4 A
Air Outlet Connection Type
NPT
Cooling Method
Air
Frequency
60 Hz
Maximum Operating Temperature
350 Degrees F

Description

Air Cooled Aftercooler, Maximum Compressor Output Power 75 hp, Maximum Air Flow 539 cfm, Air Inlet Size 2 in, Air Inlet Connection Type NPT, Maximum Operating Temperature 350 Degrees F, Maximum Operating Pressure 250 psi, Overall Height 21 in, Overall Width 26 3/8 in, Overall Depth 17 3/4 in, Phase Single, Voltage 115/230V AC, Maximum Fan Horsepower 1/2 hp, Air Outlet Connection Type NPT, Air Outlet Size 2 in, Construction Aluminum, Cooling Method Air, Current Rating 4 A
