  11. Oil Cooler, AC, 8-80 GPM, 115/230 V, 1/2 HP

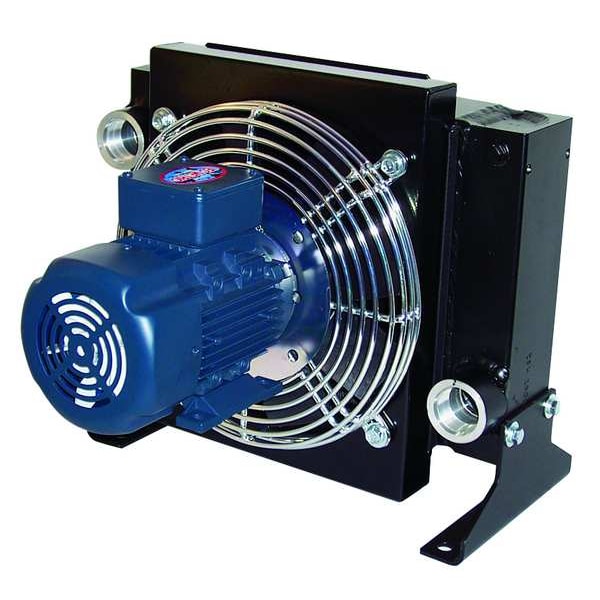

Akg Oil Cooler, AC, 8-80 GPM, 115/230 V, 1/2 HP A15-1 - main

Oil Cooler, AC, 8-80 GPM, 115/230 V, 1/2 HP

  • Mfr # A15-1

  • Zoro # G0820391

product price: $1,375.99
/ea
Free Shipping & Returns

Key Features

HP Heat Removed
15 hp
Motor Type - Oil Coolers
AC
Max. Flow
80 gpm
Max. Pressure
377 psi
Voltage
115/230V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
A15-1
Zoro #
G0820391
UPC #
-
Country of Origin
United States

Dimensions

Inlet Port Thread Size
SAE #16
Height (In.)
15.91
Port Size
SAE #16
Depth (In.)
16
Width (In.)
16.54
Overall Depth
16 in
Overall Height
15.91 in
Overall Width
16.54 in
Motor Frame Size
56C
Outlet Port Thread Size
SAE #16

Details

HP Heat Removed
15 hp
Motor Type - Oil Coolers
AC
Max. Flow
80 gpm
Max. Pressure
377 psi
Voltage
115/230V AC
Number of Phases
1
Max. Pressure (PSI)
377
Includes
Mounting Feet
Item
Forced Air Oil Cooler
NEMA/IEC Frame
56C
Type
AC Motor
Max. Temp.
250 Degrees F
Finish
Black Painted
Construction
Aluminum
Motor HP
1/2
Flow Ranges (GPM)
8 to 80
Motor Amps
7/3.5
Fan Blade Material
PPG
Motor Enclosure Design
Totally Enclosed Fan-Cooled
With Motor/Without Motor
With Motor
Fan Guard Material
Steel
Includes Mounting Hardware
Yes
Oil Cooler Material
Aluminum
Compatible Hydraulic Fluids
Up to ISO 320
Max. Oil Temp.
250 Degrees F
Oil Cooler Finish
Powder Coated
Outlet Port Thread Gender
Female
HP
0.5 hp
Flow Range
8 to 80 gpm
Bypass Valve Included
No
Shroud Material
Steel
Inlet Port Thread Gender
Female
No. of Fans
1
Max. Operating Temp.
250 Degrees F
Mounting Bracket Material
Steel
Full Load Amps
7/3.5 A
Includes Mounting Bracket
Yes

Description

Forced Air Oil Cooler, HP Heat Removed 15 hp, Voltage 115/230V AC, Number of Phases 1, Max. Flow 80 gpm, Max. Pressure 377 psi, Inlet Port Thread Size SAE #16, Inlet Port Thread Gender Female, Outlet Port Thread Size SAE #16, Outlet Port Thread Gender Female, Overall Height 15.91 in, Overall Width 16.54 in, Overall Depth 16 in, Flow Range 8 to 80 gpm, 7/3.5 A Full Load Amps, 0.5 hp HP, Motor Frame Size 56C, Motor Type - Oil Coolers AC
