Shop ALBEO

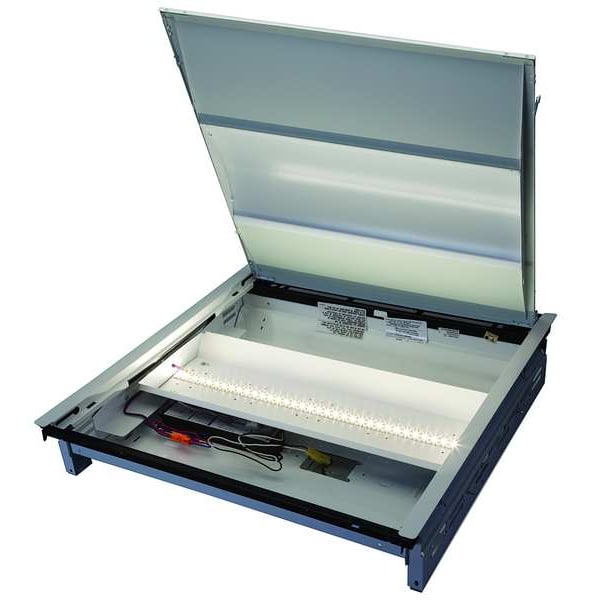

LEDTrffrRetrofitKit, 4ftL, 2ftW, 120/277VAC

  • Mfr # LVR24B040MM835VQRMWHTE

  • Zoro # G2361497


product price:  $231.99
/ea
Free Shipping & Returns

Key Features

Fixture Item
Troffer Fixture Retrofit Kit
Nominal Size - Fixtures
2 ft x 4 ft
Lighting Technology
LED
Voltage
120/277V AC
Watts
36
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
LVR24B040MM835VQRMWHTE
Zoro #
G2361497
UPC #
-
Country of Origin
Mexico

Dimensions

Nominal Size - Fixtures
2 ft x 4 ft
Fixture Length
45 39/64 in
Fixture Width
23 in
Fixture Height
2 1/2 in
Overall Height
2 1/2 in
Overall Width
23 in
Nominal Size
2 ft x 4 ft
Overall Length
45 5/8 in
Nominal Width
2 ft
Nominal Length
4 ft

Details

Fixture Item
Troffer Fixture Retrofit Kit
Item
LED Troffer Retrofit Kit
Lighting Technology
LED
Voltage
120/277V AC
Watts
36
Lighting Certification
Unrated
Dimmable
Yes
Lumens
4,000 lm
Color Temperature
3500K
Color Rendering Index
80
Max. Fixture Wattage
39.5 W
CRI
83
Lumens Per Watt
101.0
LED Replacement For
(2) Lamp T8
Green Certification or Other Recognition
DesignLights Consortium (DLC)
For Use With
Existing Recessed Troffer Fixtures
Color Temp.
3500K
Fixture Voltage
120/277
Standards
cUL Listed
Kit Contents
LED Driver, LED Board, Reflector and Bracket
Fixture Warranty
5 yr
Fixtures Per Kit
1
Fixture Temp. Range
0 Degrees to 104 Degrees F
Lens Type
Curved Lens
Fixtures per Kit
1
Lumens per Watt
101 lm/W
For Bulb Type
Integrated LED
Emergency Battery Backup
No
Series
LVR24
Max. Ambient Temp.
104 Degrees F
Light Technology
LED
Min. Ambient Temp.
0 Degrees F
Sensor Type
No Sensor
Dimming Method
0-10V
Ambient Temperature - Minimum
0 Degrees F
Light Output
4,000 lm
Driver Case
M-Case Linear
Ambient Temperature - Maximum
104 Degrees F

Description

LED Troffer Retrofit Kit, Lumens 4,000 lm, Lumens Range 4,000 to 5,999 lm, Light Technology LED, 120/277V AC, Lighting Certification Unrated, Dimmable Yes, Emergency Battery Backup No, For Bulb Type Integrated LED, Overall Height 2 1/2 in, Overall Length 45 5/8 in, Overall Width 23 in, Color Rendering Index 80, Color Temperature 3500K, Dimming Method 0-10V, Kit Contents LED Driver, LED Board, Reflector and Bracket, LED Replacement For (2) Lamp T8, Lens Type Curved Lens, Lumens per Watt 101 lm/W
