  6. 10" X 3" Non-Marking Nylon Tronix Swivel Caster, No Brake, Loads Up To 4100 lb

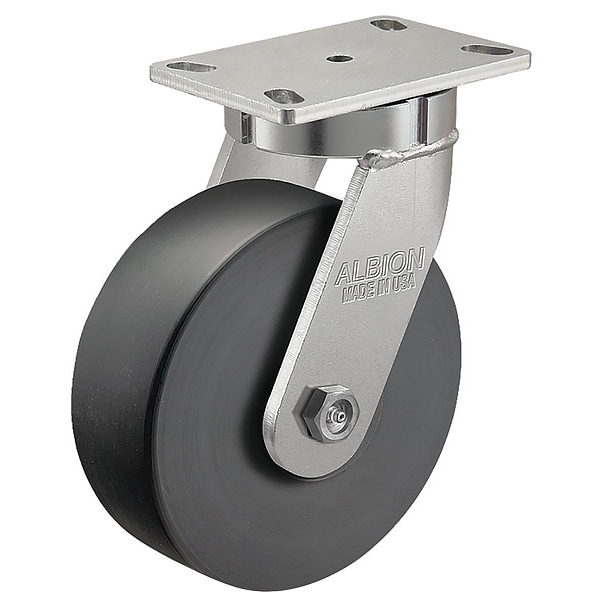

Albion 10" X 3" Non-Marking Nylon Tronix Swivel Caster, No Brake, Loads Up To 4100 lb 310NX10528S - main

10" X 3" Non-Marking Nylon Tronix Swivel Caster, No Brake, Loads Up To 4100 lb

  • Mfr # 310NX10528S

  • Zoro # G7282643

product price:  $562.99
/ea
Free Shipping & Returns

Key Features

Wheel/Tread Material
Polyolefin
Caster Brake Type
No Brake
Wheel Dia.
10 in
Wheel Width
2 in
Mounting Height
11-1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
310NX10528S
Zoro #
G7282643
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia.
10 in
Wheel Width
2 in
Mounting Height
11-1/2 in
Mounting Plate Size
4 1/2 in x 6 1/4 in
Mounting Plate Thickness
5/16 in
Mounting Bolt Dia.
1/2 in
Hub Length
3 1/2 in
Mounting Plate Length
6 1/4 in
Inside Slot Spacing - Width
2.438 in
Outside Slot Spacing - Length
5.25 in
For Axle Dia.
3/4 in
Inside Slot Spacing - Length
4.938 in
Mounting Plate Width
4 1/2 in
Outside Slot Spacing - Width
3.375 in

Details

Item
Swivel Caster
Wheel/Tread Material
Polyolefin
Caster Brake Type
No Brake
Load Rating
4100 lb
Wheel Bearing Type
Ball
Wheel/Tread Color
Black
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
3-3/8 in X 5-1/4 in
Inside Bolt Hole Spacing
2-7/16 in X 4-15/16 in
Series
310 Contender
Swivel Lead
2 1/4 in
Operating Temperature Range
-30 Degrees to 220 Degrees F
Frame Color
Silver
Caster Mounting Type
Plate
Includes Thread Guards
No
Wheel/Tread Hardness Rating
Hard
Caster Stem Type
Top Plate
Application
Conveyor-Drawn Tow-Trucks, Heavy Dty Battery Racks, Production Dollies, Heavy Duty Dough Troughs
Caster Plate Hole Pattern
A
Load Rating Range
3000 to 5999 lb
Frame Finish
Zinc Plated
Wheel Bearing Material
Precision
Swivel Raceway Type
Precision Ball
Wheel Core Material
Polyolefin
Core Color
Black
Caster Sub-Type
Kingpinless Swivel
Swivel Construction
Kingpinless
Load Capacity - Maximum
4,100 lb
For Surface Type
Asphalt, Ceramic, Grease, Metal Scrap, Oil, Rubber, Steel, Tile, Wood
Wheel Core Type
Solid
Mounting Plate Shape
Rectangle
Wheel Hardness Rating
80 Shore D
Mounting Hole Type
Slot

Description

Kingpinless Swivel, Plate Caster, Load Rating 4100 lb, Wheel Dia. 10 in, Wheel Width 2 in, Wheel/Tread Material Polyolefin, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
