  6. 3" X 1-1/4" Non-Marking Rubber Soft Round Rigid Caster, No Brake, Loads Up To 200 lb

This item is Discontinued.

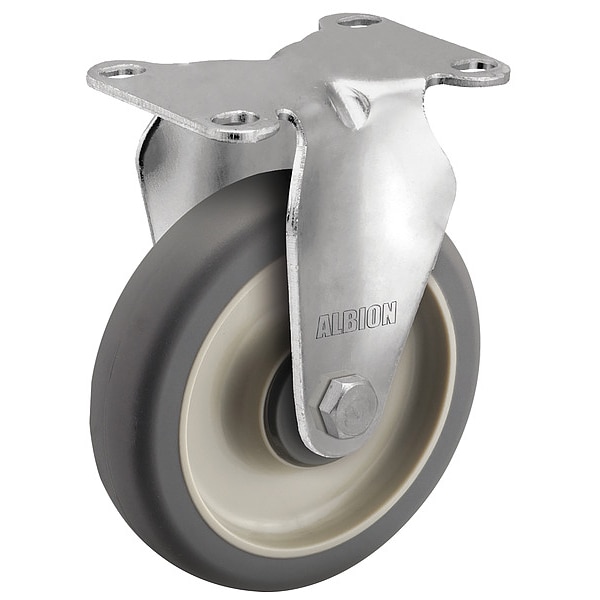

Albion 3" X 1-1/4" Non-Marking Rubber Soft Round Rigid Caster, No Brake, Loads Up To 200 lb P2XR03028R

3" X 1-1/4" Non-Marking Rubber Soft Round Rigid Caster, No Brake, Loads Up To 200 lb (Discontinued)

  • Mfr # P2XR03028R
  • Zoro # G7810558
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
P2XR03028R
Zoro #
G7810558
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
3 in
Wheel Width
1-1/4 in
Mounting Height
4-1/4 in
Mounting Plate Size
2-1/2 in X 3-5/8 in
Mounting Bolt Dia.
5/16 in
For Axle Dia.
3/8 in
Swivel Radius
None- Rigid Caster

Details

Item
Light Duty Maintenance Free Debris Rejecting Plate Caster
Caster Sub-Type
Rigid
Wheel/Tread Material
Rubber Soft (Donut)
Caster Brake Type
No Brake
Load Rating
200 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Precision Ball
Caster Stem Type
Top Plate
Wheel/Tread Color
Grey
Number of Mounting Holes
4
Tread Shape
Donut
Caster Frame Material
Steel
Core Color
Grey
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
1-3/4 in X 3-1/16 in
Inside Bolt Hole Spacing
1-3/4 in X 2-13/16 in
Swivel Bearing Seal Type
Sealed
Frame Color
Gray
Mounting Plate Bolt Hole Pattern
D
Caster Product Group
Rigid Caster
Swivel Raceway Type
Precision Ball
Wheel Type
Tread-On Core
Series
P2 Series
Operating Temperature Range
-45°F to 180°F
Features
Ergonomic, Harsh Environment Wheel, Maintenance Free, Floor Protective Wheel
Wheel/Tread Hardness Rating
Soft
Frame Finish
Zinc
Standards
ROHS Standards, FDA Compliant
Load Rating Range
0 to 299 lb
Wheel/Tread Hardness
65-75A
Wheel Core Type
Solid
Swivel Lock Type
No Lock Included
Application
Hotel Equipment, Institutional Equipment, Food Service, Racks and Cases, Stock Carts, Laundry Hampers
ESD Conductive
No
NSF Listed
No
Wheel Core Material
Polypropylene
Includes Spanner Bushing
Yes
Includes Thread Guards
Yes
Load Capacity - Maximum
200 lb

Description

Rigid, Plate Caster, Load Rating 200 lb, Swivel Lock Type No Lock Included, Wheel Dia. 3 in, Wheel Width 1 1/4 in, Wheel/Tread Material Rubber, Wheel Core Material Polypropylene, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
