Shop ALBION

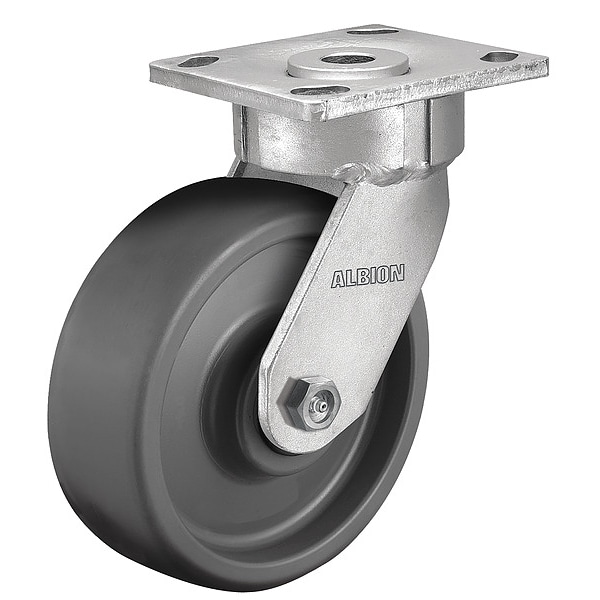

4" X 2" Non-Marking Elastomer Swivel Caster, No Brake, Loads Up To 1250

  • Mfr # 18SE04228S

  • Zoro # G7239566

product price:
$
162.99
/ea
Free Shipping & Returns

Key Features

Caster Brake Type
No Brake
Swivel Construction
Kingpin
Frame Color
Silver
Application
Picking Carts, Light Towing Carts, Jit Carts, Agv and Tow Line Applications
Non-Marking
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
18SE04228S
Zoro #
G7239566
UPC #
-
Country of Origin
China

Dimensions

Mounting Height
5 5/8 in
Mounting Plate Size
4 in x 4 1/2 in
Wheel Dia.
4 in
Wheel Width
2 in
Mounting Bolt Dia.
3/8 in
Hub Length
2 7/16 in
Outside Slot Spacing - Width
3 in
For Axle Dia.
1/2 in
Mounting Plate Thickness
5/16 in
Inside Slot Spacing - Width
2.625 in
Outside Slot Spacing - Length
3.625 in
Inside Slot Spacing - Length
3 in
Mounting Plate Length
4 1/2 in
Mounting Plate Width
4 in

Details

Caster Brake Type
No Brake
Swivel Construction
Kingpin
Frame Color
Silver
Application
Picking Carts, Light Towing Carts, Jit Carts, Agv and Tow Line Applications
Item
Plate Caster
Non-Marking
Yes
Wheel Bearing Type
Ball
Swivel Lead
1 11/16 in
Wheel/Tread Material
Polyolefin
Swivel Raceway Type
Precision Ball
Caster Plate Hole Pattern
B
Number of Mounting Holes
4
Core Color
Gray
Caster Mounting Type
Plate
Wheel Core Material
Polyolefin
Wheel/Tread Color
Gray
Frame Finish
Zinc Plated
Number of Wheels
1
Outside Bolt Hole Spacing
3 in x 3-5/8 in
Series
18 Ergonomic
Includes Thread Guards
No
Caster Sub-Type
Swivel
Wheel/Tread Hardness Rating
Hard
Load Rating Range
1000 to 2999 lb
Inside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Tread Shape
Standard
Operating Temperature Range
Up to 250 Degrees F
Load Rating
1250 lb
Caster Frame Material
Steel
Wheel Bearing Material
Precision
Wheel Hardness Rating
63 Shore D
Load Capacity - Maximum
1,250 lb
Caster Features
Maintenance Free
Mounting Hole Type
Slot
For Surface Type
Asphalt, Ceramic, Grease, Metal Scrap, Oil, Rubber, Steel, Tile, Wood
Mounting Plate Shape
Rectangle
Wheel Core Type
Solid

Description

Swivel, Plate Caster, Load Rating 1250 lb, Wheel Dia. 4 in, Wheel Width 2 in, Wheel/Tread Material Polyolefin, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
