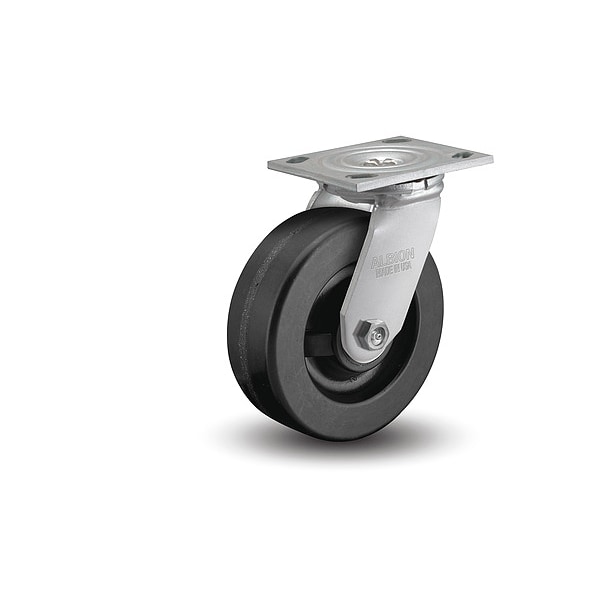

Albion 4" X 2" Non-Marking Phenolic Swivel Caster, No Brake, Loads Up To 800 lb 16TM04201S - main

4" X 2" Non-Marking Phenolic Swivel Caster, No Brake, Loads Up To 800 lb

  • Mfr # 16TM04201S

  • Zoro # G8662103

product price:  $39.79
/ea

Key Features

Caster Frame Material
Steel
Core Color
Black
Standards
NSF Listed, RoHS Compliant
Swivel Radius
3 11/16 in
System of Measurement
Inch
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
16TM04201S
Zoro #
G8662103
UPC #
-
Country of Origin
United States

Dimensions

Swivel Radius
3 11/16 in
Wheel Dia.
4 in
Wheel Width
2 in
Mounting Bolt Dia.
3/8 in
For Axle Dia.
1/2 in
Mounting Plate Thickness
1/4 in
Mounting Height
5-5/8 in
Mounting Plate Size
4 in x 4 1/2 in
Hub Length
2 3/16 in
Inside Slot Spacing - Length
3 in
Mounting Plate Width
4 in
Outside Slot Spacing - Width
3 in
Mounting Plate Length
4 1/2 in
Inside Slot Spacing - Width
2.625 in
Outside Slot Spacing - Length
3.625 in

Details

Caster Frame Material
Steel
Core Color
Black
Item
Swivel Caster
Standards
NSF Listed, RoHS Compliant
System of Measurement
Inch
Inside Bolt Hole Spacing
2-5/8 in X 3 in
Number of Wheels
1
Caster Brake Type
No Brake
Load Rating
800 lb
Features
Kingpin, Medium Heavy Duty Caster
Caster Sub-Type
Swivel
Non-Marking
Yes
Frame Finish
Zinc Plated
Caster Mounting Type
Plate
Caster Plate Hole Pattern
B
Application
Distribution Carts, Dollies, Floor Trucks, Platform Trucks, Warehouse Trucks, Waste Disposal Trucks
Outside Bolt Hole Spacing
3 in X 3-5/8 in
Frame Construction
Cold Forged
Wheel Core Type
Solid
Number of Mounting Holes
4
Tread Shape
Standard
Swivel Construction
Kingpin
Wheel Bearing Type
Roller
NSF Listed
Yes
Swivel Raceway Type
Double Ball
Swivel Lock Type
No Lock Included
Includes Thread Guards
No
Wheel/Tread Color
Black
Wheel Core Material
Phenolic
Wheel/Tread Material
Phenolic
Swivel Lead
1 11/16 in
With Toe Plate
No
Operating Temperature Range
-65 Degrees to 250 Degrees F
Includes Spanner Bushing
Yes
Wheel/Tread Hardness Rating
Extra Hard
Load Rating Range
300 to 999 lb
Load Capacity - Maximum
800 lb
Mounting Hole Type
Slot
For Surface Type
Asphalt, Grease, Steel, Wood
Mounting Plate Shape
Rectangle
Wheel Hardness Rating
90 Shore D

Description

Swivel, Plate Caster, Load Rating 800 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 2 in, Wheel/Tread Material Phenolic, Wheel Core Material Phenolic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
