  6. 4" X 2" Non-Marking Polyurethane Premium Swivel Caster, Face Brake, Loads Up To 600 lb

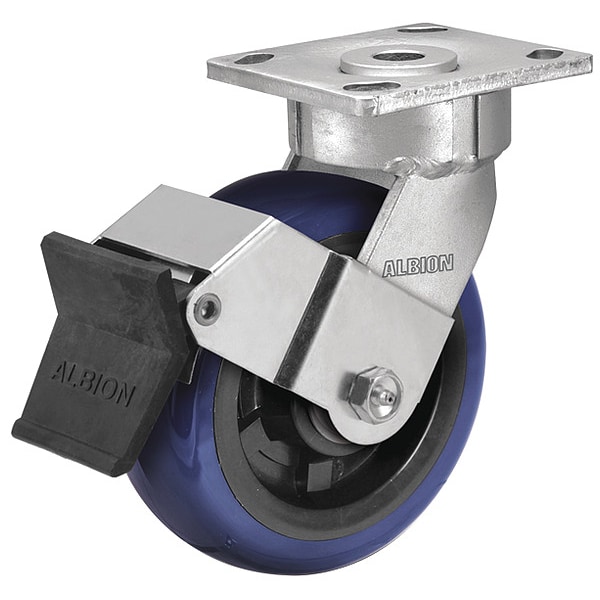

Albion 4" X 2" Non-Marking Polyurethane Premium Swivel Caster, Face Brake, Loads Up To 600 lb 18EG04229SFBE - main

4" X 2" Non-Marking Polyurethane Premium Swivel Caster, Face Brake, Loads Up To 600 lb

  • Mfr # 18EG04229SFBE

  • Zoro # G8092840

product price:  $107.95
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
Wheel/Tread Material
Polyurethane
Caster Brake Type
Face Brake
Wheel Dia.
4 in
Wheel Width
2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
18EG04229SFBE
Zoro #
G8092840
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
4 in
Wheel Width
2 in
Mounting Height
5-5/8 in
Mounting Plate Size
4 in x 4 1/2 in
Mounting Plate Thickness
1/4 in
Mounting Bolt Dia.
3/8 in
Mounting Plate Length
4 1/2 in
Inside Slot Spacing - Width
2.625 in
Inside Slot Spacing - Length
3 in
Outside Slot Spacing - Length
3.625 in
Outside Slot Spacing - Width
3 in
Mounting Plate Width
4 in
For Axle Dia.
1/2 in

Details

Item
Swivel Caster with Brake
Caster Sub-Type
Swivel
Wheel/Tread Material
Polyurethane
Caster Brake Type
Face Brake
Load Rating
600 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Ball
Wheel Hardness Rating
55 Shore D
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Black
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
3 in X 3-5/8 in
Inside Bolt Hole Spacing
2-5/8 in X 3 in
Caster Stem Type
Top Plate
Brake Location
Face
Application
Picking Carts, Light Towing Carts, Jit Carts, Agv & Tow Line Applications
Frame Finish
Zinc Plated
Swivel Construction
Swivel
Includes Spanner Bushing
No
Swivel Bearing Seal Type
Sealed
Includes Thread Guards
No
Wheel Core Material
Polypropylene
Operating Temperature Range
-40 to 180 Degrees F
Wheel/Tread Hardness Rating
Hard
NSF Listed
No
Load Rating Range
300 to 999 lb
Load Capacity
600 lb
Load Capacity - Maximum
600 lb
Caster Features
Maintenance Free
Mounting Hole Type
Slot
Wheel Core Type
Solid
Mounting Plate Shape
Rectangle
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood

Description

Swivel, Plate Caster, Load Rating 600 lb, Wheel Dia. 4 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Polypropylene, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Face Brake, Tread Shape Standard
