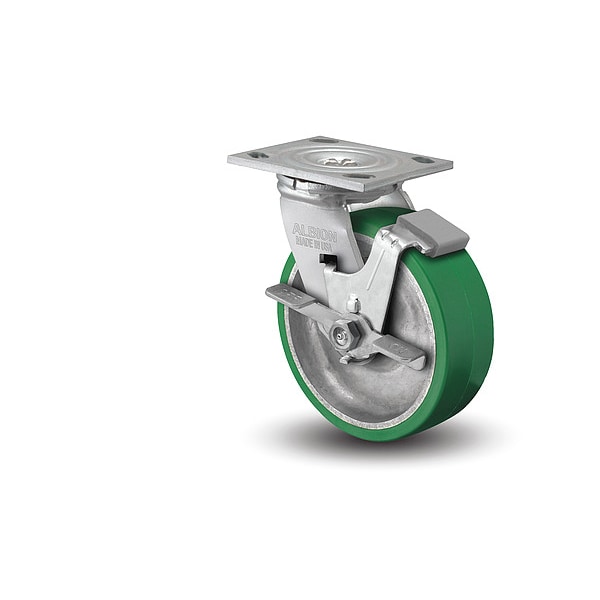

4" X 2" Non-Marking Polyurethane Swivel Caster, Face Brake, Loads Up To 700 lb

  • Mfr # 16PD04201SFBA
  • Zoro # G8662042
product price:
$
93.59
/ea

Key Features

Caster Plate Hole Pattern
B
Caster Sub-Type
Swivel
Core Color
Green
Inside Bolt Hole Spacing
2 5/8 in x 3 in
Wheel Dia.
4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
16PD04201SFBA
Zoro #
G8662042
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia.
4 in
Wheel Width
2 in
Mounting Bolt Dia.
3/8 in
Swivel Radius
4 3/32 in
Mounting Height
5 5/8 in
For Axle Dia.
1/2 in
Mounting Plate Thickness
1/4 in
Mounting Plate Size
4 in x 4 1/2 in
Hub Length
2 3/16 in
Mounting Plate Length
4 1/2 in
Mounting Plate Width
4 in
Outside Slot Spacing - Width
3 in
Outside Slot Spacing - Length
3.625 in
Inside Slot Spacing - Width
2.625 in
Inside Slot Spacing - Length
3 in
Fits Chest Size
Kingpin, Medium Heavy Duty Caster

Details

Caster Plate Hole Pattern
B
Caster Sub-Type
Swivel
Core Color
Green
Inside Bolt Hole Spacing
2 5/8 in x 3 in
Caster Frame Material
Steel
Load Rating
700 lb
Number of Wheels
1
Caster Mounting Type
Plate
Caster Brake Type
Side Brake
Outside Bolt Hole Spacing
3 in x 3 5/8 in
System of Measurement
Inch
Item
Plate Caster
Frame Finish
Zinc Plated
Standards
NSF Listed, RoHS Compliant
Non-Marking
Yes
Features
Kingpin, Medium Heavy Duty Caster
Application
Distribution Carts, Dollies, Floor Trucks, Platform Trucks, Warehouse Trucks, Waste Disposal Trucks
Frame Construction
Cold Forged
Swivel Construction
Kingpin
Wheel Bearing Type
Roller
Operating Temperature Range
-40 Degrees to 180 Degrees F
Includes Thread Guards
No
Wheel Core Type
Solid
Tread Shape
Donut
Number of Mounting Holes
4
Swivel Lock Type
No Lock Included
Wheel Core Material
Aluminum
Swivel Raceway Type
Double Ball
Wheel/Tread Hardness Rating
Hard
With Toe Plate
No
Swivel Lead
1 11/16 in
Wheel/Tread Color
Green
Wheel/Tread Material
Polyurethane
NSF Listed
Yes
Load Rating Range
300 to 999 lb
Includes Spanner Bushing
Yes
Wheel Hardness Rating
60 Shore D
Load Capacity - Maximum
700 lb
Brake Location
Left Side
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel, Tile, Wood
Mounting Plate Shape
Rectangle
Mounting Hole Type
Slot

Description

Swivel, Plate Caster, Load Rating 700 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Aluminum, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Side Brake, Tread Shape Donut
