  11. 4" X 2" Non-Marking Polyurethane Swivel Caster, Face Brake, Loads Up To 800 lb

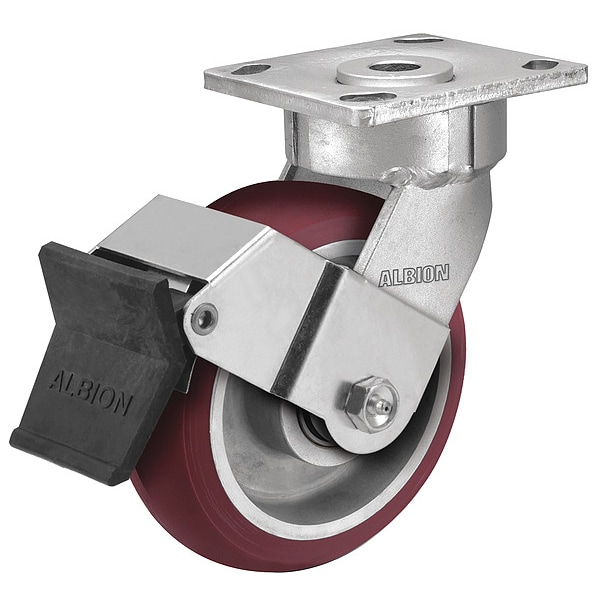

Albion 4" X 2" Non-Marking Polyurethane Swivel Caster, Face Brake, Loads Up To 800 lb 18AX04228SFBE - main

4" X 2" Non-Marking Polyurethane Swivel Caster, Face Brake, Loads Up To 800 lb

  • Mfr # 18AX04228SFBE

  • Zoro # G8092527

product price: $157.46
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
Wheel/Tread Material
Polyurethane
Caster Brake Type
Face Brake
Wheel Dia.
4 in
Wheel Width
2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
18AX04228SFBE
Zoro #
G8092527
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
4 in
Wheel Width
2 in
Mounting Height
5-5/8 in
Mounting Plate Size
4 in x 4 1/2 in
Mounting Plate Thickness
1/4 in
Mounting Bolt Dia.
3/8 in
For Axle Dia.
1/2 in
Inside Slot Spacing - Length
3 in
Mounting Plate Length
4 1/2 in
Mounting Plate Width
4 in
Outside Slot Spacing - Length
3.625 in
Inside Slot Spacing - Width
2.625 in
Outside Slot Spacing - Width
3 in

Details

Item
Swivel Caster with Brake
Caster Sub-Type
Swivel
Wheel/Tread Material
Polyurethane
Caster Brake Type
Face Brake
Load Rating
800 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Ball
Wheel/Tread Color
Red
Wheel Hardness Rating
85 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Grey
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
3 in X 3-5/8 in
Inside Bolt Hole Spacing
2-5/8 in X 3 in
Caster Plate Hole Pattern
B
Wheel Core Material
Aluminum
Load Rating Range
300 to 999 lb
Caster Stem Type
Top Plate
Standards
ROHS Standards
ESD Conductive
No
Swivel Lock Type
No Lock Included
Frame Color
Gray
Application
Picking Carts, Light Towing Carts, Jit Carts, Agv & Tow Line Applications
Wheel/Tread Hardness Rating
Soft
Operating Temperature Range
-40 to 180 Degrees F
Swivel Raceway Type
Precision Ball
Features
Ergonomic, Maintenance Free, Easier Push/Pull Force, Quieter Operation
Wheel Core Type
Solid
Frame Finish
Zinc Plated
Series
18 Series
Includes Thread Guards
No
Swivel Bearing Seal Type
Sealed
NSF Listed
No
Swivel Construction
Swivel
Includes Spanner Bushing
No
Load Capacity - Maximum
800 lb
Mounting Plate Shape
Rectangle
Brake Location
Face
Mounting Hole Type
Slot
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Caster Features
Maintenance Free

Description

Swivel, Plate Caster, Load Rating 800 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Aluminum, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Face Brake, Tread Shape Standard
