  6. 4" X 2" Non-Marking Polyurethane Swivel Caster, No Brake, Loads Up To 700 lb

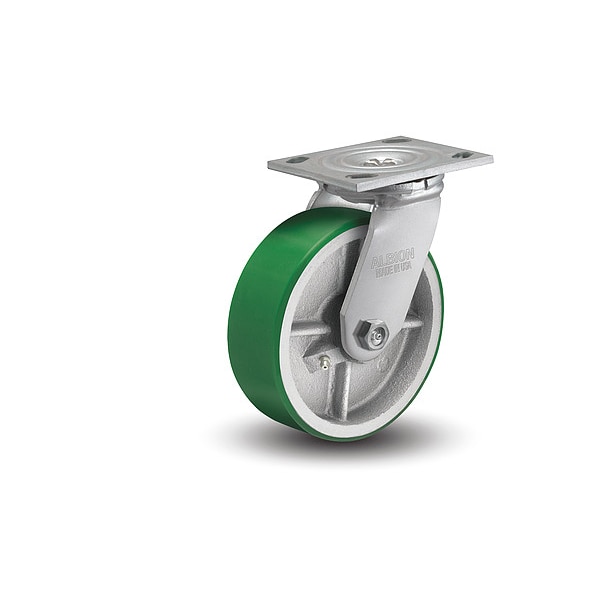

Albion 4" X 2" Non-Marking Polyurethane Swivel Caster, No Brake, Loads Up To 700 lb 16PI04201S - main

4" X 2" Non-Marking Polyurethane Swivel Caster, No Brake, Loads Up To 700 lb

  • Mfr # 16PI04201S

  • Zoro # G200712755

product price:  $58.39
/ea

Key Features

Includes Thread Guards
No
Caster Plate Hole Pattern
B
Mounting Bolt Dia.
3/8 in
Caster Stem Type
Top Plate
Number of Wheels
1
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
16PI04201S
Zoro #
G200712755
UPC #
-
Country of Origin
United States

Dimensions

Mounting Bolt Dia.
3/8 in
Mounting Plate Size
4 in x 4 1/2 in
Wheel Width
2 in
Swivel Radius
3 11/16 in
Mounting Height
5-5/8 in
Wheel Dia.
4 in
For Axle Dia.
1/2 in
Mounting Plate Thickness
1/4 in
Hub Length
2 3/16 in
Inside Slot Spacing - Width
2.625 in
Mounting Plate Length
4 1/2 in
Outside Slot Spacing - Length
3.625 in
Mounting Plate Width
4 in
Inside Slot Spacing - Length
3 in
Outside Slot Spacing - Width
3 in

Details

Includes Thread Guards
No
Caster Plate Hole Pattern
B
Caster Stem Type
Top Plate
Number of Wheels
1
Swivel Raceway Type
Double Ball
Wheel Bearing Type
Roller
Wheel/Tread Material
Polyurethane
Wheel Core Material
Iron
Application
Distribution Carts, Dollies, Floor Trucks, Platform Trucks, Warehouse Trucks, Waste Disposal Trucks
Wheel/Tread Color
Green
NSF Listed
Yes
Caster Frame Material
Steel
Standards
NSF Listed, RoHS Compliant
Frame Finish
Zinc Plated
Caster Mounting Type
Plate
Caster Sub-Type
Swivel
Operating Temperature Range
-40 Degrees F to 180 Degrees F
Tread Shape
Standard
Features
Economical Wheel, Kingpin, Medium Heavy Duty Caster
Frame Construction
Cold Forged
Outside Bolt Hole Spacing
3 in X 3-5/8 in
Swivel Construction
Kingpin
Swivel Lock Type
No Lock Included
System of Measurement
Inch
Core Color
Grey
Inside Bolt Hole Spacing
2-5/8 in X 3 in
Load Rating
700 lb
Caster Brake Type
No Brake
Swivel Lead
1 11/16 in
Number of Mounting Holes
4
Non-Marking
Yes
Wheel/Tread Hardness Rating
Hard
With Toe Plate
No
Item
Swivel Caster
Load Rating Range
300 to 999 lb
Includes Spanner Bushing
Yes
Wheel Hardness Rating
95 Shore A
Load Capacity - Maximum
700 lb
Wheel Core Type
Solid
Mounting Hole Type
Slot
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel, Tile, Wood
Mounting Plate Shape
Rectangle

Description

Swivel, Plate Caster, Load Rating 700 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
