Shop ALBION

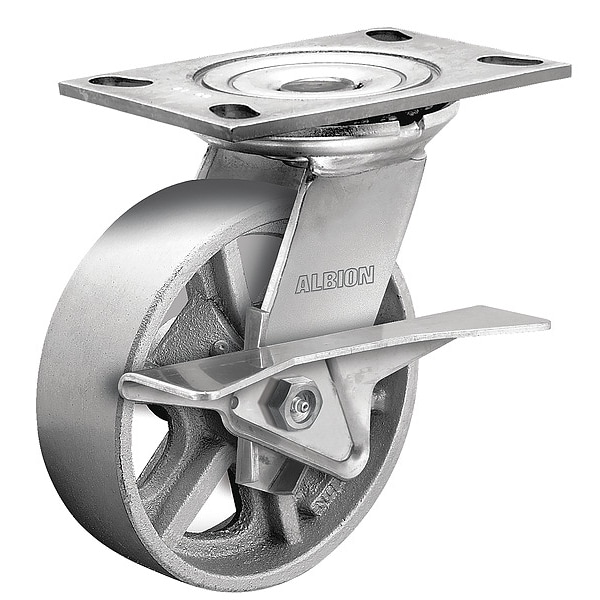

5" X 2" Cast Iron Swivel Caster, Cam Brake, Loads Up To 1300 lb

  • Mfr # 62CA05201SCB62

  • Zoro # G7239085

product price:  $122.99
/ea
Free Shipping & Returns

Key Features

Tread Shape
Standard
Wheel Dia.
5 in
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Wheel/Tread Hardness Rating
Extra Hard
Hub Length
3 3/16 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
62CA05201SCB62
Zoro #
G7239085
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
5 in
Hub Length
3 3/16 in
Mounting Plate Size
4 1/2 in x 6 1/4 in
Mounting Bolt Dia.
1/2 in
Mounting Height
7 1/2 in
Wheel Width
2 in
Outside Slot Spacing - Width
3.375 in
Inside Slot Spacing - Width
2.438 in
Mounting Plate Width
4 1/2 in
Mounting Plate Length
6 1/4 in
For Axle Dia.
1/2 in
Mounting Plate Thickness
1/4 in
Outside Slot Spacing - Length
5.25 in
Inside Slot Spacing - Length
4.938 in

Details

Tread Shape
Standard
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Wheel/Tread Hardness Rating
Extra Hard
Application
Movable Racks, Conveyor Or inDragline in Operations, Utility Trucks, Corregated Box Trucks, Caster Mounted Production Jigs And Fixtures
Non-Marking
Yes
Caster Sub-Type
Swivel
Frame Finish
Zinc Plated
Series
62 Med-Heavy
Swivel Lead
1 1/2 in
Wheel/Tread Color
Cast Iron
Swivel Construction
Kingpin
Number of Wheels
1
Load Rating
1300 lb
Swivel Raceway Type
Roller
Wheel Bearing Material
Roller
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
System of Measurement
Inch
Number of Mounting Holes
4
Includes Thread Guards
No
Caster Mounting Type
Plate
Load Rating Range
1000 to 2999 lb
Wheel Core Material
Iron
Wheel/Tread Material
Iron
Wheel Bearing Type
Roller
Caster Brake Type
Side Brake
Caster Plate Hole Pattern
A
Item
Plate Caster
Operating Temperature Range
Up to 800 Degrees F
Caster Frame Material
Steel
Frame Color
Silver
Core Color
Gray
Load Capacity - Maximum
1,300 lb
Wheel Core Type
Solid
Brake Location
Right Side
Mounting Hole Type
Slot
Wheel Hardness Rating
145 BHN
Mounting Plate Shape
Rectangle
For Surface Type
Asphalt, Grease, Steel

Description

Swivel, Plate Caster, Load Rating 1300 lb, Wheel Dia. 5 in, Wheel Width 2 in, Wheel/Tread Material Iron, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Side Brake, Tread Shape Standard
