  6. 5" X 2" Non-Marking Polypropylene Swivel Caster, Face Brake, Loads Up To 550 lb

This item is Discontinued.

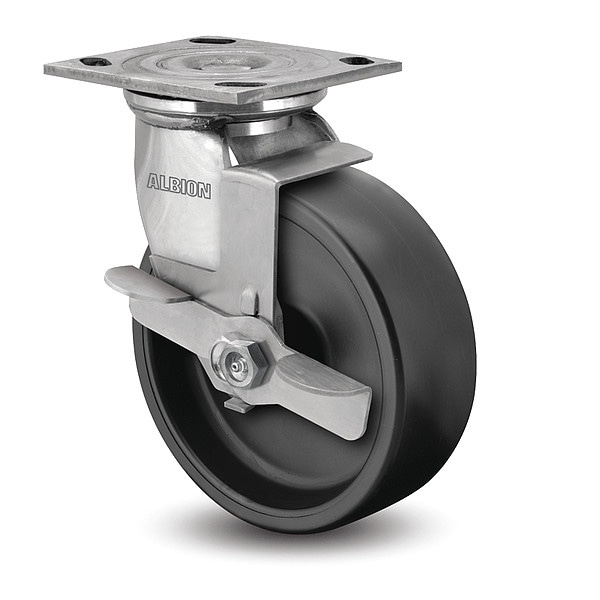

Albion 5" X 2" Non-Marking Polypropylene Swivel Caster, Face Brake, Loads Up To 550 lb 05PB05201SFBD

5" X 2" Non-Marking Polypropylene Swivel Caster, Face Brake, Loads Up To 550 lb (Discontinued)

  • Mfr # 05PB05201SFBD
  • Zoro # G800712841
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
05PB05201SFBD
Zoro #
G800712841
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia.
5 in
Wheel Width
2 in
Mounting Height
6-1/2 in
Mounting Plate Size
4 in x 4 1/2 in
Mounting Plate Thickness
1/4 in
Mounting Bolt Dia.
3/8 in
Swivel Radius
4 1/8 in
Overall Wheel Width
2 in
For Axle Dia.
1/2 in
Hub Length
2 3/16 in

Details

Item
Swivel with Face Brake
Caster Sub-Type
Swivel
Wheel/Tread Material
Polypropylene
Caster Brake Type
Face Brake
Load Rating
550 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Roller
Wheel/Tread Color
Black
Wheel Hardness Rating
65 Shore D
Number of Mounting Holes
4
Tread Shape
Donut
Caster Frame Material
Stainless Steel
Core Color
Black
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
3 in X 3-5/8 in
Inside Bolt Hole Spacing
2-5/8 in X 3 in
Caster Plate Hole Pattern
B
With Toe Plate
No
Features
Brake, Economical Wheel, Stainless
Caster Stem Type
Top Plate
Wheel Core Material
Polypropylene
Includes Spanner Bushing
Yes
Swivel Raceway Type
Double Ball
Swivel Lead
1 5/8 in
Frame Construction
Formed
Swivel Lock Type
No Lock Included
NSF Listed
Yes
Operating Temperature Range
-20 Degrees F to 180 Degrees F
Wheel Bearing Material
Stainless Steel
Wheel Type
Polypropylene
Includes Thread Guards
No
Standards
NSF Listed, RoHS Compliant
Application
Food Processing, Bakery Dough Troughs,Stainless Carts, Pharmaceuticals, Laboratory, Clean Room, Hospital Waste Management, Marine, Dollies
Frame Finish
Stainless Steel
Wheel/Tread Hardness Rating
Hard
Load Rating Range
300 to 999 lb
Load Capacity - Maximum
550 lb

Description

Swivel, Plate Caster, Load Rating 550 lb, Swivel Lock Type No Lock Included, Wheel Dia. 5 in, Wheel Width 2 in, Wheel/Tread Material Polypropylene, Wheel Core Material Polypropylene, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Face Brake, Tread Shape Donut
