  6. 6" X 2" Non-Marking Phenolic Rigid Caster, No Brake, Loads Up To 1200 lb

This item is Discontinued.

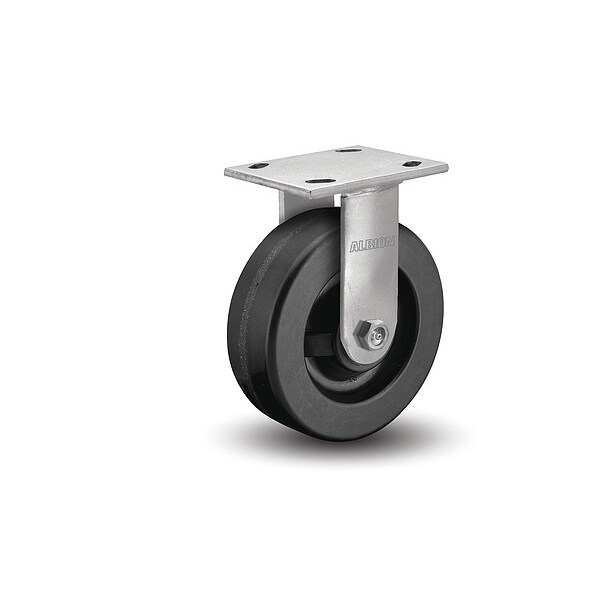

Albion 6" X 2" Non-Marking Phenolic Rigid Caster, No Brake, Loads Up To 1200 lb 05TM06201R

6" X 2" Non-Marking Phenolic Rigid Caster, No Brake, Loads Up To 1200 lb (Discontinued)

  • Mfr # 05TM06201R
  • Zoro # G300712792
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
05TM06201R
Zoro #
G300712792
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia.
6 in
Wheel Width
2 in
Mounting Height
7-1/2 in
Mounting Plate Size
4 in x 4 1/2 in
Mounting Plate Thickness
1/4 in
Mounting Bolt Dia.
3/8 in
For Axle Dia.
1/2 in
Overall Wheel Width
2 in
Hub Length
2 3/16 in

Details

Item
Rigid Caster
Caster Sub-Type
Rigid
Wheel/Tread Material
Phenolic
Caster Brake Type
No Brake
Load Rating
1200 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Roller
Wheel/Tread Color
Black
Wheel Hardness Rating
Rockwell 102 E
Number of Mounting Holes
4
Tread Shape
Donut
Caster Frame Material
Stainless Steel
Core Color
Black
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
3 in X 3-5/8 in
Inside Bolt Hole Spacing
2-5/8 in X 3 in
Caster Plate Hole Pattern
B
Wheel/Tread Hardness Rating
Hard
Swivel Lead
0 in
Frame Construction
Formed
Caster Stem Type
Top Plate
Swivel Raceway Type
Double Ball
Operating Temperature Range
-65 Degrees F to 250 Degrees F (300 Degrees F intermittent)
Wheel Type
Phenolic
Swivel Lock Type
No Lock Included
NSF Listed
Yes
Wheel Bearing Material
Stainless Steel
Application
Bakery Troughs, Clean Room, Dollies, Food Processing, Food Service, Hospital Waste Management, Laboratory Equipment, Marine, Pharmaceutical Equipment
Includes Spanner Bushing
Yes
Standards
NSF Listed, RoHS Compliant
Includes Thread Guards
No
Frame Finish
Stainless Steel
With Toe Plate
No
Features
Stainless, USA-Made Wheel
Wheel Core Material
Phenolic
Load Rating Range
1000 to 2999 lb
Load Capacity - Maximum
1,200 lb

Description

Rigid, Plate Caster, Load Rating 1200 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Phenolic, Wheel Core Material Phenolic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Donut
