Shop ALBION

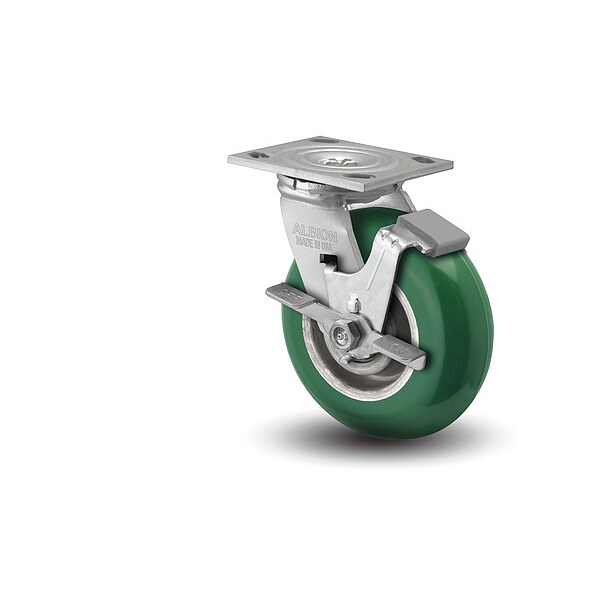

6" X 2" Non-Marking Polyurethane Round Swivel Caster, Face Brake, Loads Up To 1250 lb

  • Mfr # 16PM06228SFBA

  • Zoro # G8662331

product price:
$
112.99
/ea
Free Shipping & Returns

Key Features

Load Rating
1250 lb
Non-Marking
Yes
Core Color
Grey
Caster Frame Material
Steel
System of Measurement
Inch
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
16PM06228SFBA
Zoro #
G8662331
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia.
6 in
Swivel Radius
4 3/4 in
Wheel Width
2 in
Mounting Bolt Dia.
3/8 in
Mounting Height
7 1/4 in
For Axle Dia.
1/2 in
Mounting Plate Thickness
1/4 in
Mounting Plate Size
4 in x 4 1/2 in
Hub Length
2 3/16 in
Inside Slot Spacing - Width
2.625 in
Inside Slot Spacing - Length
3 in
Mounting Plate Length
4 1/2 in
Outside Slot Spacing - Width
3 in
Outside Slot Spacing - Length
3.625 in
Mounting Plate Width
4 in

Details

Load Rating
1250 lb
Non-Marking
Yes
Core Color
Grey
Caster Frame Material
Steel
System of Measurement
Inch
Frame Finish
Zinc Plated
Standards
NSF Listed, RoHS Compliant
Inside Bolt Hole Spacing
2 5/8 in x 3 in
Outside Bolt Hole Spacing
3 in x 3 5/8 in
Application
Distribution Carts, Dollies, Floor Trucks, Platform Trucks, Warehouse Trucks, Waste Disposal Trucks
Caster Sub-Type
Swivel
Number of Wheels
1
Caster Brake Type
Side Brake
Caster Mounting Type
Plate
Features
Brake, Ergonomic Wheel, Kingpin, Maintenance-Free Wheel, Medium Heavy Duty Caster, Premium Polyurethane Wheel
Caster Plate Hole Pattern
B
Item
Plate Caster
Swivel Construction
Kingpin
Wheel/Tread Color
Green
Wheel/Tread Material
Polyurethane
NSF Listed
Yes
Wheel Core Type
Solid
Frame Construction
Cold Forged
Includes Thread Guards
No
Number of Mounting Holes
4
Tread Shape
Standard
Swivel Raceway Type
Double Ball
Operating Temperature Range
-40 Degrees F to +180 Degrees F
Swivel Lead
1 3/4 in
Wheel Core Material
Aluminum
With Toe Plate
No
Wheel/Tread Hardness Rating
Firm
Wheel Bearing Type
Roller
Swivel Lock Type
No Lock Included
Load Rating Range
1000 to 2999 lb
Includes Spanner Bushing
No
Load Capacity - Maximum
1,250 lb
Wheel Hardness Rating
95 Shore A
Mounting Plate Shape
Rectangle
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel, Tile, Wood
Mounting Hole Type
Slot
Brake Location
Left Side

Description

Swivel, Plate Caster, Load Rating 1250 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Aluminum, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Side Brake, Tread Shape Standard
