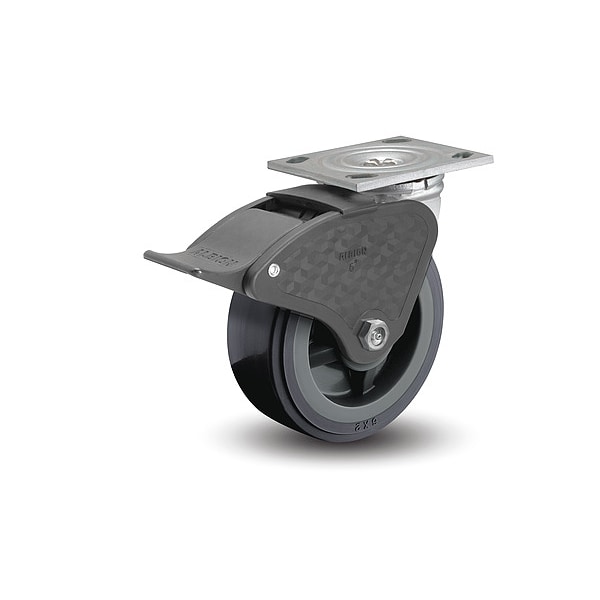

6" X 2" Non-Marking Polyurethane Swivel Caster, Total Lock Brake, Loads Up To 1250 lb

  • Mfr # 16XA06201ST
  • Zoro # G800712971
product price:
$
131.99
/ea
Free Shipping & Returns

Key Features

Caster Brake Type
Total Lock
Wheel Core Type
Solid
Swivel Raceway Type
Double Ball
Load Rating
900 lb
Mounting Bolt Dia.
3/8 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
16XA06201ST
Zoro #
G800712971
UPC #
-
Country of Origin
United States

Dimensions

Mounting Bolt Dia.
3/8 in
Wheel Width
2 in
Mounting Plate Thickness
1/4 in
Mounting Height
7 1/4 in
Mounting Plate Size
4 in x 4 1/2 in
Wheel Dia.
6 in
For Axle Dia.
1/2 in
Hub Length
2 3/16 in
Outside Slot Spacing - Width
3 in
Inside Slot Spacing - Width
2.625 in
Outside Slot Spacing - Length
3.625 in
Mounting Plate Width
4 in
Inside Slot Spacing - Length
3 in
Mounting Plate Length
4 1/2 in

Details

Caster Brake Type
Total Lock
Wheel Core Type
Solid
Swivel Raceway Type
Double Ball
Load Rating
900 lb
Swivel Construction
Kingpin
NSF Listed
Yes
Frame Finish
Zinc Plated
Outside Bolt Hole Spacing
3 in x 3 5/8 in
Item
Plate Caster
Standards
NSF, RoHS
Application
Dollies, Floor Trucks, Shop/Distribution Carts, Warehouse Trucks, Waste Disposal Trucks
Number of Mounting Holes
4
Swivel Lead
1 3/4 in
Swivel Lock Type
Total Lock
Caster Sub-Type
Swivel
Caster Mounting Type
Plate
Wheel Core Material
Polypropylene
Wheel Bearing Type
Roller
Number of Wheels
1
Caster Plate Hole Pattern
B
Non-Marking
Yes
Inside Bolt Hole Spacing
2 5/8 in x 3 in
Core Color
Grey
Frame Construction
Cold Forged
Wheel/Tread Material
Polyurethane
Caster Frame Material
Steel
System of Measurement
Inch
Load Rating Range
300 to 999 lb
Wheel/Tread Color
Gray
Includes Spanner Bushing
Yes
Includes Thread Guards
No
Tread Shape
Standard
Wheel/Tread Hardness Rating
Hard
Load Capacity - Maximum
900 lb
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel, Tile, Wood
Wheel Hardness Rating
55 Shore D
Mounting Plate Shape
Rectangle
Brake Location
Face
Mounting Hole Type
Slot

Description

Swivel, Plate Caster, Load Rating 900 lb, Swivel Lock Type Total Lock, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Polypropylene, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Total Lock, Tread Shape Standard
