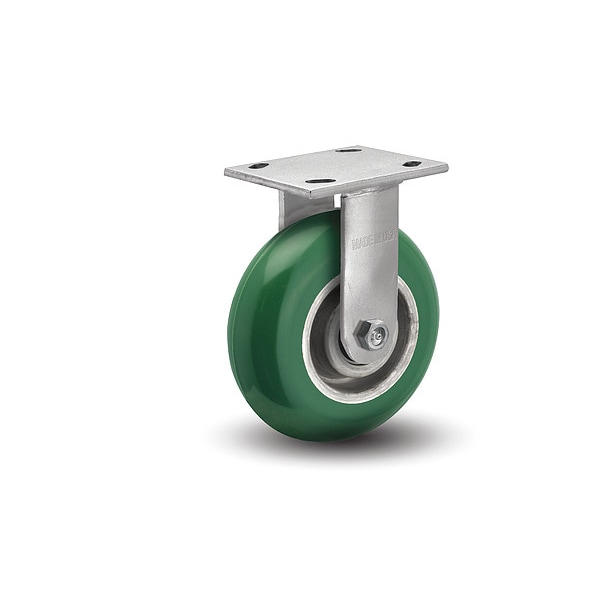

8" X 2" Non-Marking Polyurethane Round Rigid Caster, No Brake, Loads Up To 1250 lb

  • Mfr # 16PM08228R
  • Zoro # G8662112
product price:
$
134.99
/ea
Free Shipping & Returns

Key Features

Mounting Bolt Dia.
3/8 in
Frame Finish
Zinc Plated
Load Rating
1250 lb
Caster Frame Material
Steel
Non-Marking
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
16PM08228R
Zoro #
G8662112
UPC #
-
Country of Origin
United States
Frame Finish
Zinc Plated
Load Rating
1250 lb
Caster Frame Material
Steel
Non-Marking
Yes
Item
Plate Caster
Caster Plate Hole Pattern
B
Inside Bolt Hole Spacing
2 5/8 in x 3 in
Features
Ergonomic Wheel, Kingpin, Maintenance-Free Wheel, Medium Heavy Duty Caster, Premium Polyurethane Wheel
Core Color
Grey
Application
Distribution Carts, Dollies, Floor Trucks, Platform Trucks, Warehouse Trucks, Waste Disposal Trucks
Caster Sub-Type
Rigid
Caster Brake Type
No Brake
Standards
NSF Listed, RoHS Compliant
Number of Wheels
1
Caster Mounting Type
Plate
Outside Bolt Hole Spacing
3 in x 3 5/8 in
System of Measurement
Inch
Operating Temperature Range
-40 Degrees F to +180 Degrees F
Wheel/Tread Material
Polyurethane
Tread Shape
Standard
Wheel Core Type
Solid
Swivel Raceway Type
Double Ball
Wheel/Tread Color
Green
Wheel/Tread Hardness Rating
Firm
NSF Listed
Yes
With Toe Plate
No
Swivel Lock Type
No Lock Included
Wheel Bearing Type
Roller
Swivel Lead
0 in
Includes Thread Guards
No
Wheel Core Material
Aluminum
Frame Construction
Cold Forged
Number of Mounting Holes
4
Load Rating Range
1000 to 2999 lb
Includes Spanner Bushing
No
Load Capacity - Maximum
1,250 lb
Wheel Hardness Rating
95 Shore A
Mounting Plate Shape
Rectangle
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel, Tile, Wood
Mounting Hole Type
Slot

Dimensions

Mounting Bolt Dia.
3/8 in
Wheel Dia.
8 in
Wheel Width
2 in
Mounting Plate Thickness
1/4 in
Mounting Height
9 1/2 in
For Axle Dia.
1/2 in
Mounting Plate Size
4 in x 4 1/2 in
Hub Length
2 3/16 in
Mounting Plate Width
4 in
Outside Slot Spacing - Width
3 in
Outside Slot Spacing - Length
3.625 in
Inside Slot Spacing - Width
2.625 in
Inside Slot Spacing - Length
3 in
Mounting Plate Length
4 1/2 in
Fits Chest Size
Ergonomic Wheel, Kingpin, Maintenance-Free Wheel, Medium Heavy Duty Caster, Premium Polyurethane Wheel

Description

Rigid, Plate Caster, Load Rating 1250 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Aluminum, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
