  6. 8" X 2" Non-Marking Polyurethane Round Swivel Caster, Total Lock Brake, Loads Up To 1250 lb

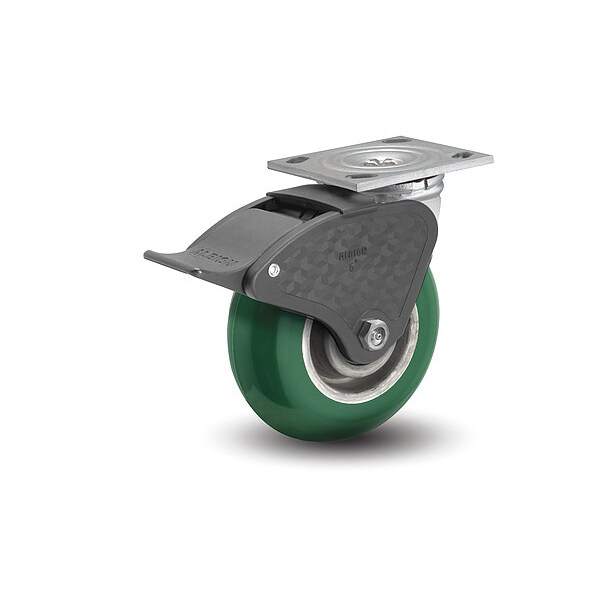

Albion 8" X 2" Non-Marking Polyurethane Round Swivel Caster, Total Lock Brake, Loads Up To 1250 lb 16PM08228ST - main

8" X 2" Non-Marking Polyurethane Round Swivel Caster, Total Lock Brake, Loads Up To 1250 lb

  • Mfr # 16PM08228ST

  • Zoro # G200712984

product price:  $187.99
/ea
Free Shipping & Returns

Key Features

Caster Plate Hole Pattern
B
Wheel Core Material
Aluminum
Mounting Height
9-1/2 in
Operating Temperature Range
-40 Degrees F to +180 Degrees F
Frame Construction
Cold Forged
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
16PM08228ST
Zoro #
G200712984
UPC #
-
Country of Origin
United States

Dimensions

Mounting Height
9-1/2 in
Mounting Plate Thickness
1/4 in
Mounting Bolt Dia.
3/8 in
Swivel Radius
8 5/8 in
Wheel Dia.
8 in
Mounting Plate Size
4 in x 4 1/2 in
For Axle Dia.
1/2 in
Wheel Width
2 in
Hub Length
2 3/16 in
Outside Slot Spacing - Width
3 in
Inside Slot Spacing - Length
3 in
Inside Slot Spacing - Width
2.625 in
Outside Slot Spacing - Length
3.625 in
Mounting Plate Length
4 1/2 in
Mounting Plate Width
4 in

Details

Caster Plate Hole Pattern
B
Wheel Core Material
Aluminum
Operating Temperature Range
-40 Degrees F to +180 Degrees F
Frame Construction
Cold Forged
Number of Mounting Holes
4
Application
Distribution Carts, Dollies, Floor Trucks, Platform Trucks, Warehouse Trucks, Waste Disposal Trucks
Wheel/Tread Material
Polyurethane
Caster Stem Type
Top Plate
Caster Sub-Type
Swivel
Features
Brake, Ergonomic Wheel, Kingpin, Maintenance-Free Wheel, Medium Heavy Duty Caster, Premium Polyurethane Wheel
Swivel Lock Type
No Lock Included
Item
Swivel with Total Lock Brake
Tread Shape
Standard
Non-Marking
Yes
Standards
NSF Listed, RoHS Compliant
Wheel Bearing Type
Roller
Wheel/Tread Hardness Rating
Soft
Number of Wheels
1
NSF Listed
Yes
Frame Finish
Zinc Plated
Inside Bolt Hole Spacing
2-5/8 in X 3 in
Load Rating
1250 lb
Includes Thread Guards
No
Caster Mounting Type
Plate
Caster Frame Material
Steel
Swivel Construction
Kingpin
Swivel Raceway Type
Double Ball
Core Color
Grey
Caster Brake Type
Total Lock
Wheel/Tread Color
Green
System of Measurement
Inch
Wheel Core Type
Solid
Swivel Lead
1 3/4 in
Outside Bolt Hole Spacing
3 in X 3-5/8 in
With Toe Plate
No
Load Rating Range
1000 to 2999 lb
Includes Spanner Bushing
No
Load Capacity - Maximum
1,250 lb
Wheel Hardness Rating
95 Shore A
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel, Tile, Wood
Brake Location
Face
Mounting Plate Shape
Rectangle
Mounting Hole Type
Slot

Description

Swivel, Plate Caster, Load Rating 1250 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Aluminum, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Total Lock, Tread Shape Standard
