This item is Discontinued.

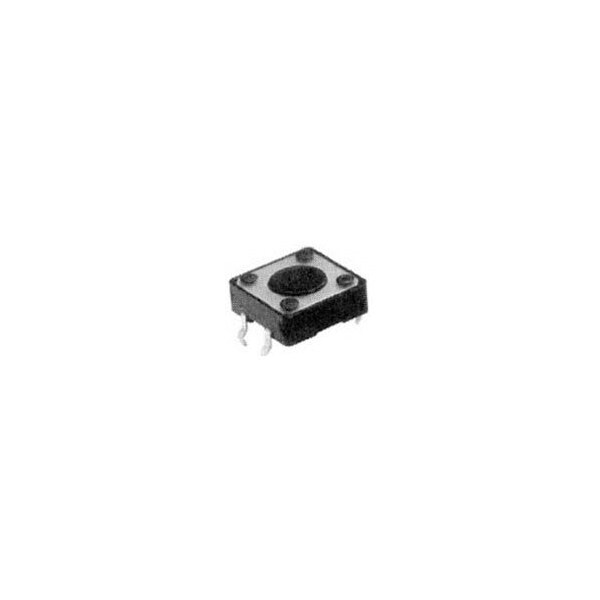

Alcoswitch FSM100=12MM TACTILE PB SWITCH FSM100

FSM100=12MM TACTILE PB SWITCH (Discontinued)

  • Mfr # FSM100
  • Zoro # G200967261
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FSM100
Zoro #
G200967261
UPC #
-
Country of Origin
Korea, Republic of

Dimensions

Switch Height (in)
0.169
Button Width
6.7 mm [ .264 in ]
Actuator Length
6.35 mm [ .25 in ]

Details

Operator Illumination
Non-Illuminated
Terminal Connection
Printed Circuit Board
Case Material
Polyamide
Actuator Style
Round
Operating Function
No
Tactile
Yes
Number of Actuators
1
Ganged
With
Temperature Rating (°C)
Standard
Cover Material
Polyester
Snap Action
Without
ESD Grounding Terminal
Without
Actuator Profile
Flush
Support Bracket
Without
Illuminated
No
Actuator Color
Black
Low Profile
With
Leg Style
Kinked
Actuator Force
160 g [ 5.648 oz ]
Configuration (Pole-Throw)
Single Pole - Single Throw
Contact Base Material
Copper Alloy
Case Color
Black
Mounting Type
Through Hole
Tactile Feel
With
Bushing Style
Unthreaded
Actuator Material
Polyester
Contact Plating
Silver
Contact Current Rating (mA)
50
Process Sealed
No
Product Type
Switch
Dust Proof
No
Mounting Angle
Vertical
