  13. MTG206P=(MSTG)MUSTANG TOGGLE S
This item is Discontinued.

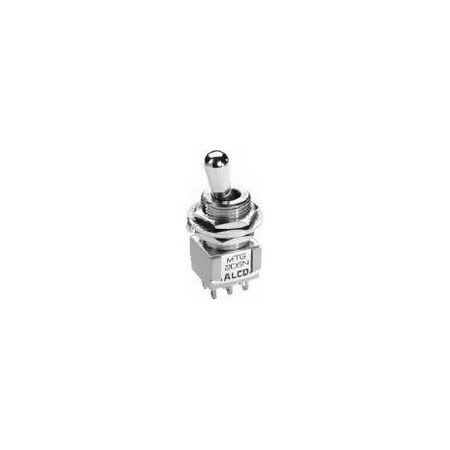

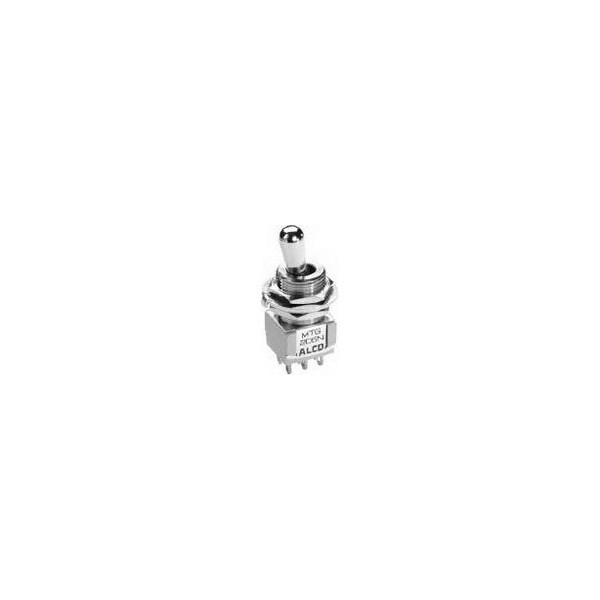

Alcoswitch MTG206P=(MSTG)MUSTANG TOGGLE S MTG206P

MTG206P=(MSTG)MUSTANG TOGGLE S (Discontinued)

  • Mfr # MTG206P
  • Zoro # G200968206
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
MTG206P
Zoro #
G200968206
UPC #
-
Country of Origin
United States

Dimensions

Bushing Thread Size
15/32-32
Toggle Length
11.48 mm [ .452 in ]

Details

Color
Green
Switch Type
Toggle
Bushing Style
Threaded
UL/CSA Current Rating (250V) (A)
3
Configuration (Pole-Throw)
Double Pole - Double Throw
Contact Resistance (mΩ)
10
Process Sealed
No
Contact Current Rating (A)
6
Contact Base Material
Copper Alloy
Mounting Type
Panel
UL Flammability Rating
UL 94V-0
Actuator Finish
Chrome
Voltage Rating
125 VAC
Toggle Actuation
Vertical
Toggle Style
Baton Short
Seal Type
Terminal Seal (Insert Molded)
Operating Function
On Off On
Dielectric Strength (VAC)
1500
Product Type
Switch
Sealed
Yes
Contact Plating
Gold Flash over Silver
Insulation Resistance (MΩ)
1000
Termination Type
Vertical, Wire Lugs
