  13. SWK121F315=SW KEY LOCK KEY F-3

This item is Discontinued.

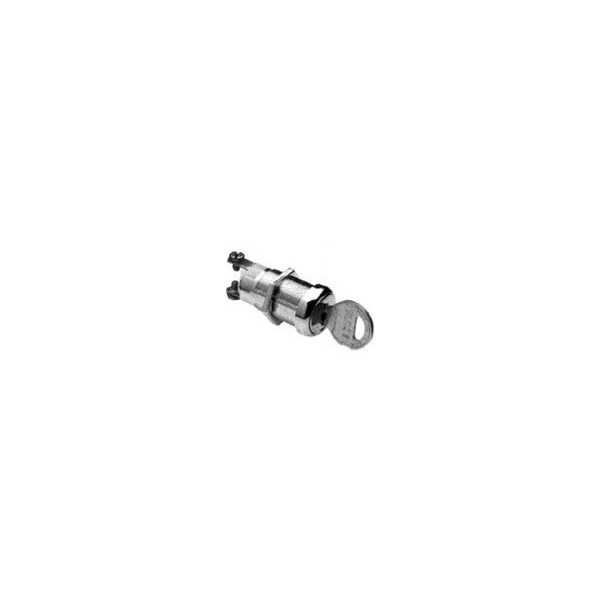

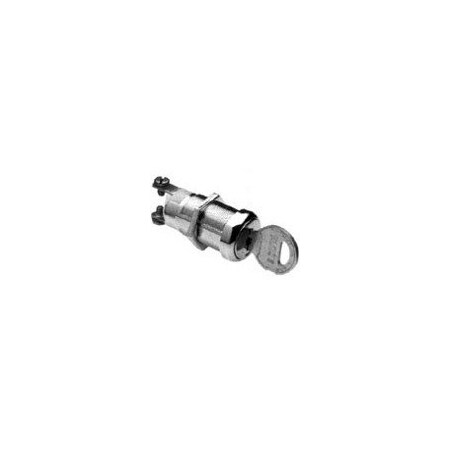

Alcoswitch SWK121F315=SW KEY LOCK KEY F-3 SWK121F315

SWK121F315=SW KEY LOCK KEY F-3 (Discontinued)

  • Mfr # SWK121F315
  • Zoro # G600967441
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SWK121F315
Zoro #
G600967441
UPC #
-
Country of Origin
United States

Dimensions

Panel Cutout Size
19.3 x 17.7 mm [ .76 x .64 in ]

Details

Switch Type
Key Lock
Contact Current Rating (A)
5, 15
Contact Timing
Non-Shorting
Frame Material
Polished Chrome
Actuator Travel
90°
Terminals/Fixed Contact Type
Screw/Solder
Product Type
Switch
Operating Temperature (Max) (°C)
85
Dielectric Strength (VAC)
1000
Contact Finish
Silver
Contact Resistance (mΩ)
50
Number of Positions
2
Key Changes
25 Standard
Operating Function
Position 1 On, Position 2 Off
Life Expectancy (Cycles)
20000
Voltage Rating
115 VAC [ 24 VDC ]
Cylinder Material
Zinc Alloy
Mounting Type
Panel
Illuminated
No
Soldering Type
Hand
Lock Body
Zinc Alloy
Configuration (Pole-Throw)
Single Pole - Single Throw
Remove Key
Position 2
Actuator Material
Brass
