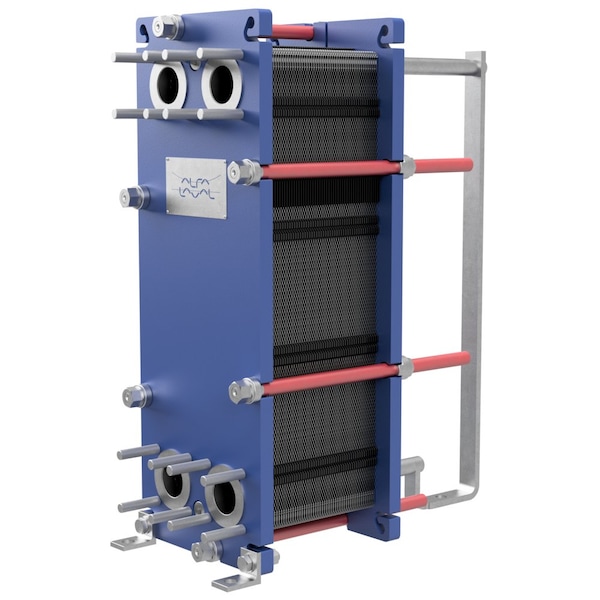

(T6-BFG-70) Gasketed Plate Heat Exchanger

The ALFA LAVAL T6-BFG-70 Gasketed Plate Heat Exchanger is a compact, high-efficiency heat transfer unit designed for use in general heating, cooling, and hydraulic oil applications. It features 70 stainless steel plates with NBRP ClipGripTM gaskets, providing a heat transfer capacity of approximately 5,240,000 BTU. This unit operates at a maximum pressure of 150 psi and within a temperature range of -20°F to 410°F. Its 2 in. 150# studded ports with stainless steel liners enhance durability and corrosion resistance, while design innovations such as CurveFlowTM, OmegaPortTM, and FlexFlowTM optimize thermal performance and pressure drop characteristics. The unit is built in compliance with ASME Section VIII, Division 1 standards.

Key Features:

• Type: Gasketed plate heat exchanger
• Plates: 70 stainless steel plates, 0.5 mm thick
• Heat Transfer Capacity: 5,240,000 BTU
• Operating Pressure: 150 psi maximum
• Temperature Range: -20°F to 410°F
• Connections: 2 in. 150# studded ports with stainless steel liners
• Gasket Material: NBRP ClipGripTM for secure, serviceable sealing
• Design Features: CurveFlowTM distribution, OmegaPortTM noncircular ports, FlexFlowTM plate design, and SteerLockTM plate alignment for optimized heat transfer and maintenance efficiency
• Frame Construction: Compact frame with fixed bolt head, lifting lugs, and tightening bolt covers for structural stability
• Dimensions: 34.6 in. H × 29.1 in. L × 13.0 in. W; weight 380 lb
• Compliance: ASME Section VIII, Division 1 certified for pressure vessel standards
• Applications: Hydraulic oil cooling, general heating, and general cooling (non-AHRI applications)
