American Beauty Tools

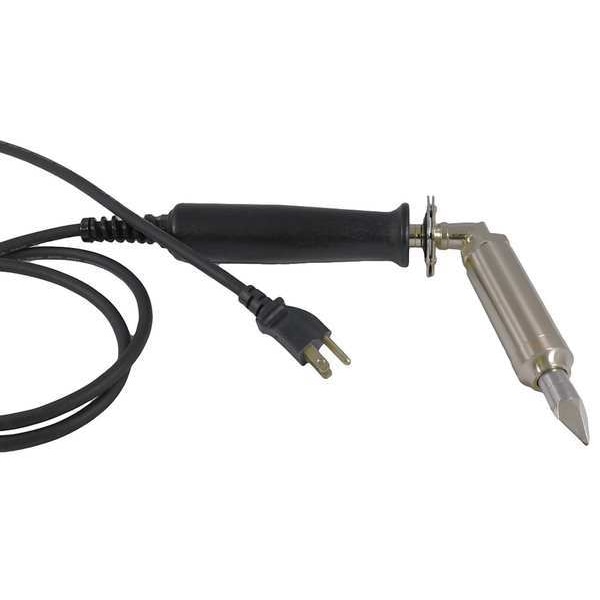

Soldering Iron, 200W, Heavy Duty

original price: $286.67
16% off
new price: $239.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Application Fabrication, Soldering
  • Includes Stand
  • Watts 200
  • Tip Size 5/8 in, 7/8 in, 1 1/8 in
  • Handle Hardwood
See all product information

Product Information

Dimensions

Tip Size 5/8 in, 7/8 in, 1 1/8 in
Tool Height 4 in
Tip Width 0.07 in
Tip Outside Diameter 0.625 in
Tool Length 12 in

Details

Item Ergonomic Soldering Iron
Application Fabrication, Soldering
Includes Stand
Watts 200
Handle Hardwood
Tip Diamond Style
Standards CE, IEC 60335-1, Edition 5.1, 2013-12, IEC 60335-2-45, Edition 3.2, 2012-01, RoHS, WEEE
Voltage 120
Type Professional-Grade
Heat Shield Available Upon Request
Features 90 Degree Angle, Modular Construction, Ni-Chrome Compression Wound Heating Elements, Paragon Iron-Clad Lead-Free Soldering Iron Tips
Temp. Rating 1000 Degrees F, 1010 Degrees F
Temperature Adjustment Fixed
Operating Temperature (Maximum) 1,050 Degrees F
Handle Style Hardwood
Number of Tips Included 1
Tip Connection Type Plug
Includes Heating Element Yes
Operating Voltage 110 to 120V AC
Power Consumption (Maximum) 200 W
Series 3158
Time to Maximum Temperature 5 min
Tip Manufacturer Model Number 44D
Handpiece Connection Type Plug
Compatible Tip Series 44
Compatible Station V3700 (5ZHA6)
Tip Thickness 0.075 in
Product Type Soldering Iron
ESD Safe No
Tip Type Diamond
Plug Type Three Prong

Description

Ergonomic Soldering Iron, Compatible Station V3700 (5ZHA6), Power Consumption (Maximum) 200 W, Tool Length 12 in, Operating Temperature (Maximum) 1,050 Degrees F, Tip Type Diamond, Tip Width 0.07 in, Time to Maximum Temperature 5 min, Temperature Adjustment Fixed, Operating Voltage 110 to 120V AC, ESD Safe No, Plug Type Three Prong, Series 3158, Product Type Soldering Iron, Includes Stand, Includes Heating Element Yes, Number of Tips Included 1, Application Fabrication, Soldering
