  11. Bottle Jack, 12 ton, Max Lift 19 3/4" H

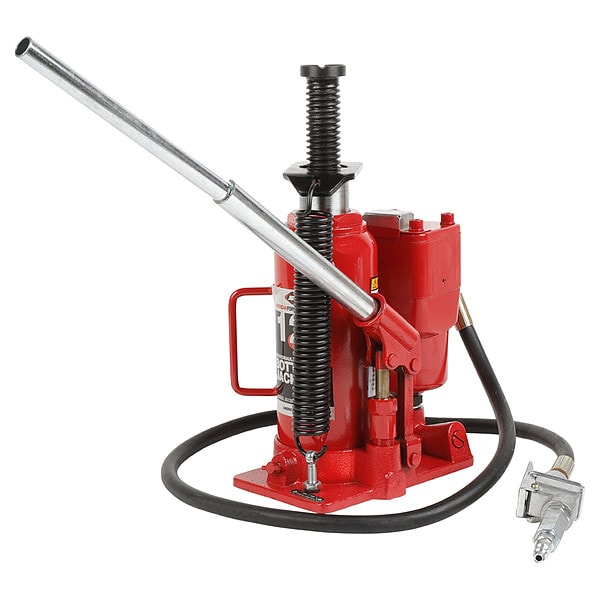

American Forge & Foundry Bottle Jack, 12 ton, Max Lift 19 3/4" H 5512B - main

Bottle Jack, 12 ton, Max Lift 19 3/4" H

  • Mfr # 5512B

  • Zoro # G608679032

product price: $318.99
/ea
Free Shipping & Returns

Key Features

Standards
ASME 2009
Base Length
8 1/2 in
Minimum Operating Pressure
90 psi
Body Material
Steel
Features
Dual Return Springs Allow for Controlled Descent, Fully Welded Tank and Frame for Superior Strength and Rugged Durability, Hose Swivels, Shielded Release Screw Helps Prevent Accidental Lowering or Damage can be Operated by either Air or Manually, Specially Engineered Air Motor for Consistent and Reliable Operation
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5512B
Zoro #
G608679032
UPC #
874015000931
Country of Origin
China

Dimensions

Base Length
8 1/2 in
Extended Height
19 in
Minimum Lift Height
10 1/4 in
Minimum Height
6 3/4 in
Inlet Connection Size
1/4 in
Extension Screw Length
3 in
Maximum Lift Height
19 3/4 in
Base Width
5 in

Details

Standards
ASME 2009
Item
Bottle Jack
Minimum Operating Pressure
90 psi
Body Material
Steel
Features
Dual Return Springs Allow for Controlled Descent, Fully Welded Tank and Frame for Superior Strength and Rugged Durability, Hose Swivels, Shielded Release Screw Helps Prevent Accidental Lowering or Damage can be Operated by either Air or Manually, Specially Engineered Air Motor for Consistent and Reliable Operation
Jack Type
Bottle Jack
Power Source
Air/Mechanical
Body Material Finish
Chrome Plated/Powder Coated
Inlet Connection Type
NPT
Maximum Operating Pressure
180 psi
Includes
Handle
Item Weight
29 lb
Work Orientation
Vertical
Load Capacity
12 ton
Lifting Actuator
Manual
Handle Type
2pc
Stroke
7 in

Description

Bottle Jack, Jack Type Bottle Jack, Load Capacity 12 ton, Body Material Steel, Lifting Actuator Manual, Minimum Lift Height 10 1/4 in, Maximum Lift Height 19 3/4 in, Power Source Air/Mechanical, Minimum Height 6 3/4 in, Standards ASME 2009, Base Length 8 1/2 in, Base Width 5 in, Body Material Finish Chrome Plated/Powder Coated, Extended Height 19 in, Extension Screw Length 3 in
