  11. Transmission Jack, 3,000 lb, Hydraulic

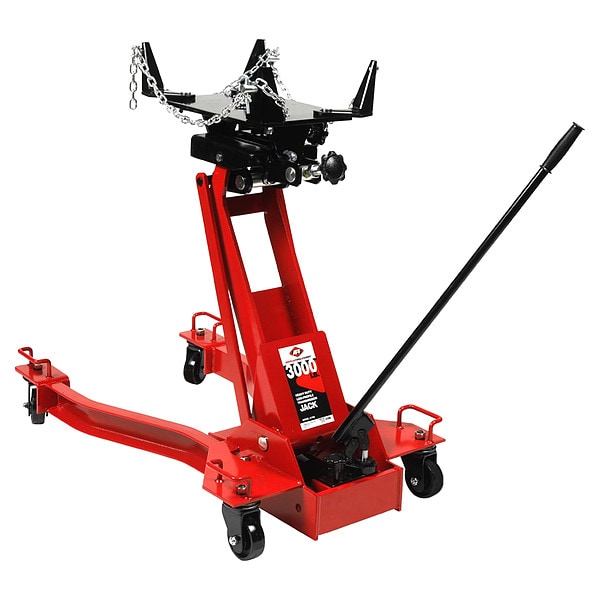

American Forge & Foundry Transmission Jack, 3,000 lb, Hydraulic 3179A - main

Transmission Jack, 3,000 lb, Hydraulic

  • Mfr # 3179A

  • Zoro # G108661469

product price: $1,998.99
/ea
Additional $160.00 delivery surcharge applies per item.
See details

Key Features

Color
Black, Red
Features
4-Way Tilting Head Allows Positioning for Installation and Removal of Transmissions, Fully Adjustable Universal Saddle with Adjustable Arms, Ideal for Light to Medium Weight Truck Transmissions, Long Handle Pivots 360 Degrees Around The Pump, Low Profile Style, Wide Chassis Design for Load Distribution and Increased Stability
Standards
ASME 2019
Head Rotation
360 Degrees
Load Capacity
3,000 lb
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3179A
Zoro #
G108661469
UPC #
874015007336
Country of Origin
China

Dimensions

Overall Length
44 in
Overall Width
28 in
Base Width
28 in
Maximum Lift Height
31 5/8 in
Minimum Height
6 1/2 in
Minimum Lift Height
6 1/2 in
Overall Height
16 in
Base Length
44 in

Details

Color
Black, Red
Features
4-Way Tilting Head Allows Positioning for Installation and Removal of Transmissions, Fully Adjustable Universal Saddle with Adjustable Arms, Ideal for Light to Medium Weight Truck Transmissions, Long Handle Pivots 360 Degrees Around The Pump, Low Profile Style, Wide Chassis Design for Load Distribution and Increased Stability
Standards
ASME 2019
Item
Transmission Jack
Head Rotation
360 Degrees
Load Capacity
3,000 lb
For Vehicle Type
Trucks
Jack Type
Transmission Jack
Power Source
Hydraulic
Caster Type
(4) Swivel
Frame Material Finish
Powder Coated
Securing Mechanism
Chain
Lifting Actuator
Pump
Number of Wheels
4
Handle Type
Long Pivoting Handle
Body Material
Steel
Item Weight
319 lb
For Lifting
Transmission
Platform Tilt Angle
Front: 79 Degrees , Rear: 9 Degrees , Side: 10 to 18 Degrees

Description

Transmission Jack, Power Source Hydraulic, Load Capacity 3,000 lb, Body Material Steel, Lifting Actuator Pump, Minimum Lift Height 6 1/2 in, Maximum Lift Height 31 5/8 in, Securing Mechanism Chain, For Lifting Transmission, Jack Type Transmission Jack, Standards ASME 2019, Base Length 44 in, Base Width 28 in, Caster Type (4) Swivel, Color Black, Red
