  9. Flush Valve Toilet, 1.28 gpf, Flushometer, Floor Mount, Elongated, White

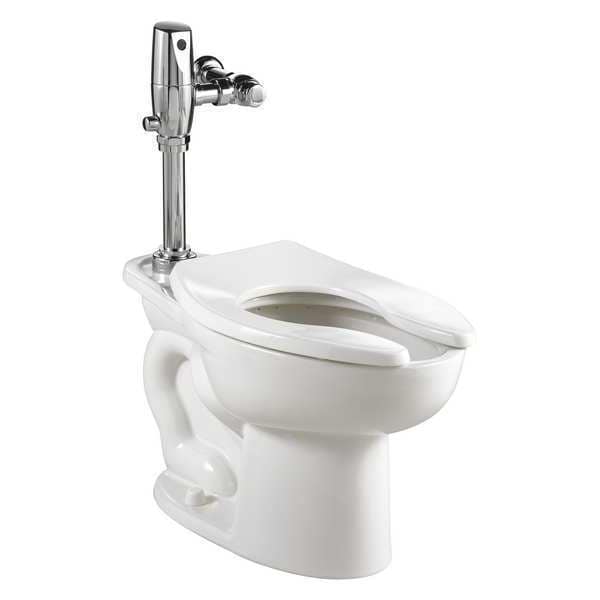

American Standard Flush Valve Toilet, 1.28 gpf, Flushometer, Floor Mount, Elongated, White 3461528.020 - main

Flush Valve Toilet, 1.28 gpf, Flushometer, Floor Mount, Elongated, White

  • Mfr # 3461528.020

  • Zoro # G0176386

product price: $464.99
/ea
Free Shipping & Returns

Key Features

Mounting Style
Floor
Bowl Shape
Elongated
Color
White
Gallons per Flush
1.28
Material
Vitreous China
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3461528.020
Zoro #
G0176386
UPC #
033056837986
Country of Origin
Mexico

Dimensions

Width
14"
Depth
27-1/4"
Height
16-1/2"
Trapway Dia.
2-1/8"
Manufacturers Warranty Length
5 yr.
Rim Height
16-1/2"
Water Surface Width
10 in
Trapway Diameter
2 1/8 in
Water Surface Length
12 in

Details

Mounting Style
Floor
Bowl Shape
Elongated
Color
White
Gallons per Flush
1.28
Material
Vitreous China
Flushing Method
Flushometer
Green Environmental Attribute
Toilet Uses 1.28 gpf or Less
Standards
ASME A112.19.2-2008/CSA B45.1-08; ANSI A117.1; ADA; EPA Watersense; CSA B651; OBC; EN 15804; ISO 21930; ASSE 1037
Item
Flush Valve Toilet
Bolt to Seat Front
18-1/2"
With Seat/Without Seat
Without Seat
Includes
16-1/2" Height Above Rim; 047007-0070A Inlet Spud; 481310-100 2 Bolt Caps; Retainers; 1" I.P.S. Angle Stop; Vandal Resistant Cap; 1" Sweat Solder Kit; Cover Tube; Wall Flange; 1-1/2" High Back Pressure Vacuum Breaker; Spud Down Tube; Spud Coupling; Flange
Power Source
6V Lithium Battery
Collection
Madera(TM) FloWise(R)
Water Surface Area
10" x 12"
Flush Handle
Sensor with Manual Override
Features
Siphon Jet, EverClean(R) Surface Inhibits The Growth of Stain and Odor Causing Bacteria, Mold and Mildew, Condensation Channel, Fully Glazed Trapway, Proximity System for Hands Free Operation, Self-Cleaning Piston Helps Prevent Clogging and Reduces Maintenance, Positive Seal Ensures Leak Free Performance, Fully Mechanical Override Button, Range Can Be Adjusted Manually or By Remote Control, Sensor and Electronics are Fully Enclosed, Automatically Flushes After 24 hr. of Non-Use to Maintain Trap Seal, 3 sec. Flush Delay, Battery Life Up to 4 yr. or 200,000 Cycles, Low Battery Indicator, Battery Can Be Changed Without Turning Off Water, Adjustable Tailpiece for Rough-In Flexibility, Can Be Installed Left or Right Handed
One Piece/Two Piece
One Piece
Flush Valve Type
Exposed Battery Sensor
Green Certification or Other Recognition
WaterSense Approved
Rough-In
10" or 12"
ADA Compliant
ADA Compliant
ADA Compliance
Yes
Weight Capacity
1000 lb.
Number of Pieces
Two Piece
Flush Mode
Single Flush
Basic Power Source
Battery
Spud Location
Top
Brand and Series
American Standard Madera(TM) FloWise(R)
Product Type
Flush Valve Toilet
Flush Handle Type
Sensor with Manual Override
Series
Madera(TM) FloWise(R)

Description

Flush Valve Toilet

Restrictions

This item has been restricted from sale in the following states: MA
