  11. Standard Bathroom Faucet, Polished Chrome, 2 Holes, Blade Handle
American Standard Standard Bathroom Faucet, Polished Chrome, 2 Holes, Blade Handle 5500140.002 - main

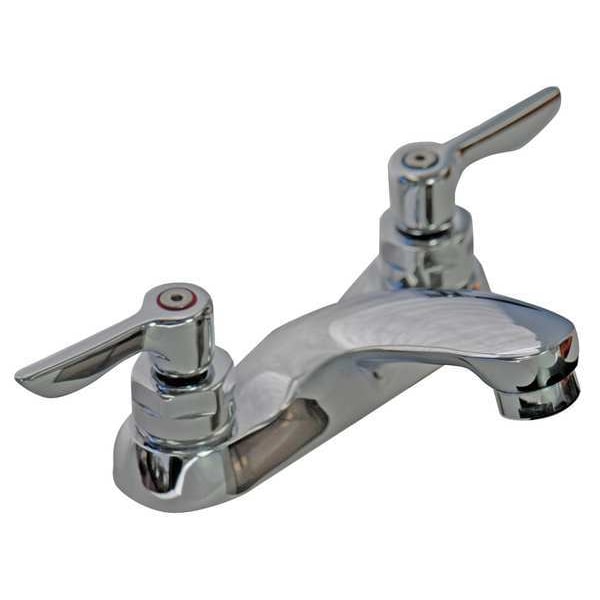

Standard Bathroom Faucet, Polished Chrome, 2 Holes, Blade Handle

  • Mfr # 5500140.002

  • Zoro # G5024363

product price: $129.99
/ea
Free Shipping & Returns

Key Features

Mounting Hole Center to Center
4"
Mounting Type
Centerset
Finish
Chrome
Handle Type
Lever
Handle Material
Metal
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5500140.002
Zoro #
G5024363
UPC #
012611086489
Country of Origin
Mexico

Dimensions

Spout Length
1 3/16 in
Height
2-3/16 in
Overall Height
4 3/4 in
Spout Height
1 3/4 in
Overall Width
11 3/4 in
Spout Height - Maximum
1 3/4 in
Inlet Connection Size
1/2 in
Spout Outlet Height
1 3/4 in
For Mounting Hole Diameter - Maximum
1 1/4 in
For Surface Thickness - Maximum
1 3/8 in

Details

Mounting Hole Center to Center
4"
Mounting Type
Centerset
Finish
Chrome
Handle Type
Lever
Handle Material
Metal
Number of Handles
2
Body Material
Cast Brass
Item
Low Arc Bathroom Faucet
Faucet Spout
Standard
Green Environmental Attribute
Faucet Flow Rate 1.5 gpm Or Less
Drain Type
None
Connection
1/2 in NPSM
Includes
1/2 in Male Inlet Shanks; Red and Blue Indexes
Series
Monterrey
Battery Charger CEC Compliant
Non CEC Compliant
Green Certification or Other Recognition
WaterSense Certified
ADA Compliance
ADA Compliant
Replacement Cartridge
2CYV2
Standards
ANSI A117.1, ASME A112.18.1/CSA B125.1, NSF 61/9
Faucet Type
Bathroom Sink Faucet
Valve Type
Ceramic Disc
Type
Two Handle Centerset
Valve Type - Faucets
Hot/Cold Cartridge
Max. Mounting Hole Center Distance
4 in
Spout Reach
3 3/4 in
Temperature Control
Non-Adjustable Temperature
Water Inlet Connection Type
Male NPSM
Application
Commercial
Outlet Type
Pressure Compensating Aerated
For Location
Bathroom
Flow Type
Aerated
Includes Drain
Drain Not Included
Mounting Hole Center-to-Center Distance - Minimum
4 in
Compatible Cartridge Manufacturer Part Number
951764-0070A
Pressure - Maximum
80 psi
Number of Mounting Holes
2
Vandal Resistance
Vandal-Resistant Outlet
Ligature Resistance
Yes
Mounting Hole Center-to-Center Distance - Maximum
4 in
Legend Style
Color
Operation Method
Manual
Inlet Connection Gender
Male
CEC Compliance
Not CEC Compliant
Spout Shape
Arc
Inlet Connection Type
NPSM
Flow Rate - Maximum
1.5 gpm
For Water Temperature
Hot/Cold
Installation Type
Deck

Description

Item Low Arc Bathroom Faucet

Restrictions

This item has been restricted from sale in the following states: CO, MA, TX, WA
