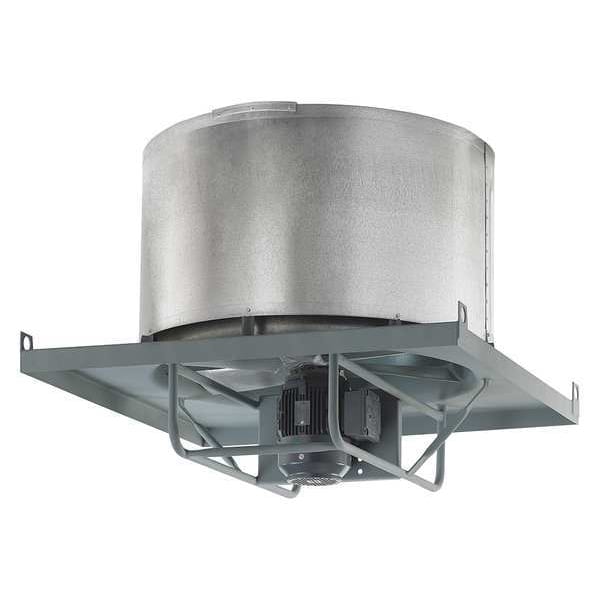

Shop AMERICRAFT FAN

Direct, 30in, Roof, Exh, 14000CFM, 3PH, 2HP, XP

  • Mfr # AML-30-2-3-EXP

  • Zoro # G3473149

product price:
$
3,521.99
/ea
Additional $155.00 delivery surcharge applies per item.
See details

Key Features

Item - Roof Ventilators
Exhaust Ventilator
Drive Type - Roof Ventilators
Direct Drive
Drive Package With Motor Included
Yes
Base Size - Roof Ventilators
45 in x 45 in
Blade Dia.
30 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
AML-30-2-3-EXP
Zoro #
G3473149
UPC #
-
Country of Origin
United States
Item - Roof Ventilators
Exhaust Ventilator
Drive Type - Roof Ventilators
Direct Drive
Drive Package With Motor Included
Yes
Voltage - Roof Ventilators
230V AC/460V AC
Phase
3
Motor HP
2 hp
CFM @ 0.000-In. SP
14000
Speed Control
No
Item
Axial Upblast Roof Exhaust Fan
Fan RPM
1,140
Sones @ 0.250-In. SP @ 5 Ft.
42 sones
Mounting Location
Roof
Max. BHP
1.9 hp
Motor Hz
60
Motor Voltage
230/460
RPM Range
1140
CFM Range
14000-10450
CFM @ 0.375-In. SP
11850
Housing Material
Steel
Drive Package Included
Yes
Speed Controllable
No
CFM @ 0.500-In. SP
10450
Type
Axial Upblast
Max. Operating Amps
3.5
Assembled/Unassembled
Assembled
CFM @ 0.125-In. SP
13750
CFM @ 0.250-In. SP
12900
Drive Type
Direct Drive
Motor HP Range
2 hp
Bearing Type
Ball Bearing
For Air Type
Flammable Vapor
Includes Motor
Yes
Maximum Noise Level @ 5 Feet
42 sones
Airflow @ 0.000 in SP
14,000 cfm
Exhaust Airflow @ 0.500 in SP
10,450 cfm
Spark Resistant Construction Type
Not Rated
Nameplate Voltage
230/460V AC
Current
3.5 A
Sound Level
42 sones @ 0.250 in SP and 5 ft
Maximum Fan Speed
1,140 RPM
Mount Type
Roof Curb
Motor Speed
1,140 RPM
Application
Designed for General Ventilation, Smoke, and Fume Removal Where Lower Cost and Less Maintenance are a Priority
Assembly
Assembled
Exhaust Airflow @ 0.250 in SP
12,900 cfm
Features
Butterfly Damper Section, Damper Blades Open When Fan is Energized and Close Weathertight When Unit is Off, Dampers Rotate in Nylon Bearings on a Stainless Steel Axle, Ruggedly Constructed Steel Curb Cap Including Spun Venturi Section for Efficient Air Flow
Motor Horsepower
2 hp
Frequency
60 Hz
Exhaust Airflow @ 0.125 in SP
13,750 cfm
Maximum Static Pressure
1/2 in wc
Includes Drive Package
Yes
Maximum Ambient Temperature
104 Degrees F
Series
AM
Base Shape
Square
Number of Speeds
1
Motor Enclosure
Totally Enclosed Fan Cooled
Blade Finish
Galvanized
Exhaust Airflow @ 0.100 in SP
14,000 cfm
For High-Static Pressure Applications
No
Safety Features
Hazardous Locations, Spark-Resistant Propellers
Housing Finish
Galvanized
Number of Blades
5
Exhaust Airflow @ 0.000 in SP
14,000 cfm
High-Efficiency Motor
No
Blade Material
Aluminum
Maximum Inlet Air Temperature
104 Degrees F
Brake Horsepower
1 9/10 hp
Hazardous Location Specification
Class I Group C; Class I Group D; Class II Group F; Class II Group G
Exhaust Airflow @ 0.375 in SP
11,850 cfm

Description

Axial Upblast Roof Exhaust Fan, Includes Motor Yes, Includes Drive Package Yes, Drive Type Direct Drive, Base Diameter Not Applicable, Base Length 45 in, Base Width 45 in, Base Shape Square, Nameplate Voltage 230/460V AC, Phase 3, Motor Horsepower 2 hp, High-Efficiency Motor No, For High-Static Pressure Applications No, Motor Enclosure Totally Enclosed Fan Cooled, Blade Diameter 30 in, For Air Type Flammable Vapor, Maximum Static Pressure 1/2 in wc, Maximum Inlet Air Temperature 104 Degrees F
