  11. 14P MINI UMNL HDR W/DH AU
This item is Discontinued.

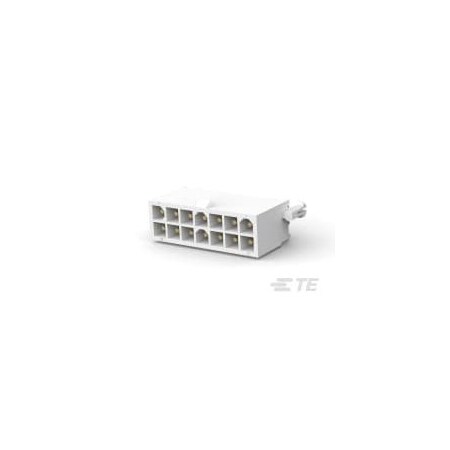

Te Connectivity 14P MINI UMNL HDR W/DH AU 794067-2

14P MINI UMNL HDR W/DH AU (Discontinued)

  • Mfr # 794067-2
  • Zoro # G000940624
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
794067-2
Zoro #
G000940624
UPC #
-
Country of Origin
Mexico

Dimensions

Min. Single Wire Size
30 AWG
Width
9.83 mm
Height
13.49 mm
Length
30.53 mm
Max. Single Wire Size
16 AWG
Maximum Single Wire Size
16 AWG
Minimum Single Wire Size
30 AWG

Details

Item
Connector
Color
White
Insulation Material
Nylon
Max. Voltage
600V AC/DC
Maximum Voltage
600 V AC/DC
Current
9.5 A
Standards
CSA Certified; UL E28476; UL Recognized
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-0
Terminal Type
Through Hole - Solder
Max. Temp.
105°C
For Use With
Plug Housing
Hole Center to Center
4.14 mm
Connector Type
Header
Material
Nylon
Number of Contacts
14
Contact Finish
Gold Plated
Contact Type
Pin
Current Rating
9.5 A
Number of Rows
2
Flammability Rating
UL 94 V-0
Terminal Finish
Matte Tin-Lead Plated
